Oil Seal KOMSF12

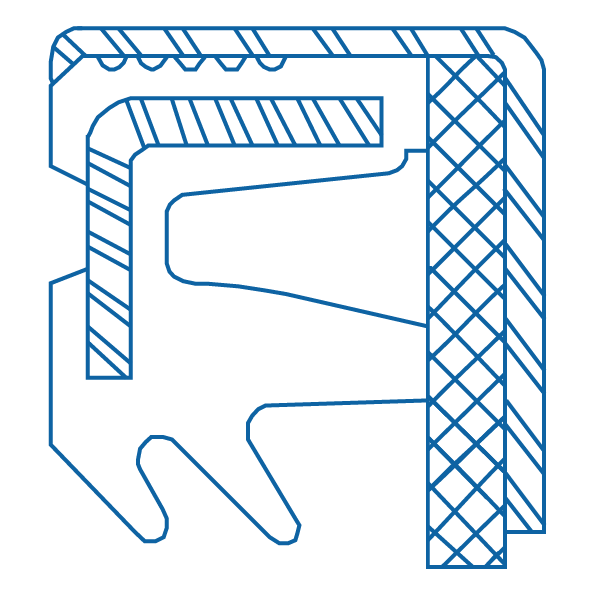

The SF12 profile is a triple-lip seal composed of a metal case with a rubber coating and a polyurethane dust shield to enhance dust-proof performance. Specifically designed for agricultural machinery.
CHARACTERISTICS
- Long service life.
- Moderate/high rotation speeds.
- Small axial displacements.
- Intended for applications in agriculture, transmissions, and rotation during high levels of contamination.
See our gInstallation guide for oil seals to perform a correct installation of the seal.
| ø | ºC | bar | m/s |
|---|---|---|---|
|
20-790 mm |
< 100ºC |
≤ 0.5 bar |
≤ 10 m/s |
MATERIALS
Elastomer
NBR 70-75 Shore A
FKM 75-80 Shore A
VMQ 70-75 Shore A
ACM 70-75 Shore A
EPDM 70-75 Shore A
HNBR 70-75 Shore A
Metal casing
AISI 1060-90 - AISI 304 - AISI 316
Spring
AISI 1060-90 - AISI 302 - AISI 304 - AISI 316
Deflector
PU - Felt
TOLERANCES FOR THE OUTSIDE DIAMETER OF THE OIL SEAL
| Housing diameter | Metal cage | Elastomeric coating | Housing with grooves |
|---|---|---|---|
| ≤50.0 | +0.10 / +0.20 | +0.15 / +0.30 | +0.20 / +0.40 |
| <50.0 ≤80.0 | +0.13 / +0.23 | +0.20 / +0.35 | +0.25 / +0.45 |
| <80.0 ≤120.0 | +0.15 / +0.25 | +0.20 / +0.35 | +0.25 / +0.45 |
| <120.0 ≤180.0 | +0.18 / +0.28 | +0.25 / +0.45 | +0.30 / +0.55 |
| <180.0 ≤300.0 | +0.20 / +0.30 | +0.25 / +0.45 | +0.30 / +0.55 |
| <300.0≤500.0 | +0.23 / +0.35 | +0.30 / +0.55 | +0.35 / +0.65 |
| <500.0 ≤630.0 | +0.23 / +0.35 | +0.35 / +0.65 | +0.40 / +0.75 |
TOLERANCE FOR THE INNER DIAMETER OF THE SEAL
The inner diameter of the sealing lip is always smaller than the shaft diameter. Depending on the shaft size, the sealing lip diameter is generally between 0.8 and 3.5 mm smaller than the shaft diameter.
