Juntas simétricas UNP

Descripción

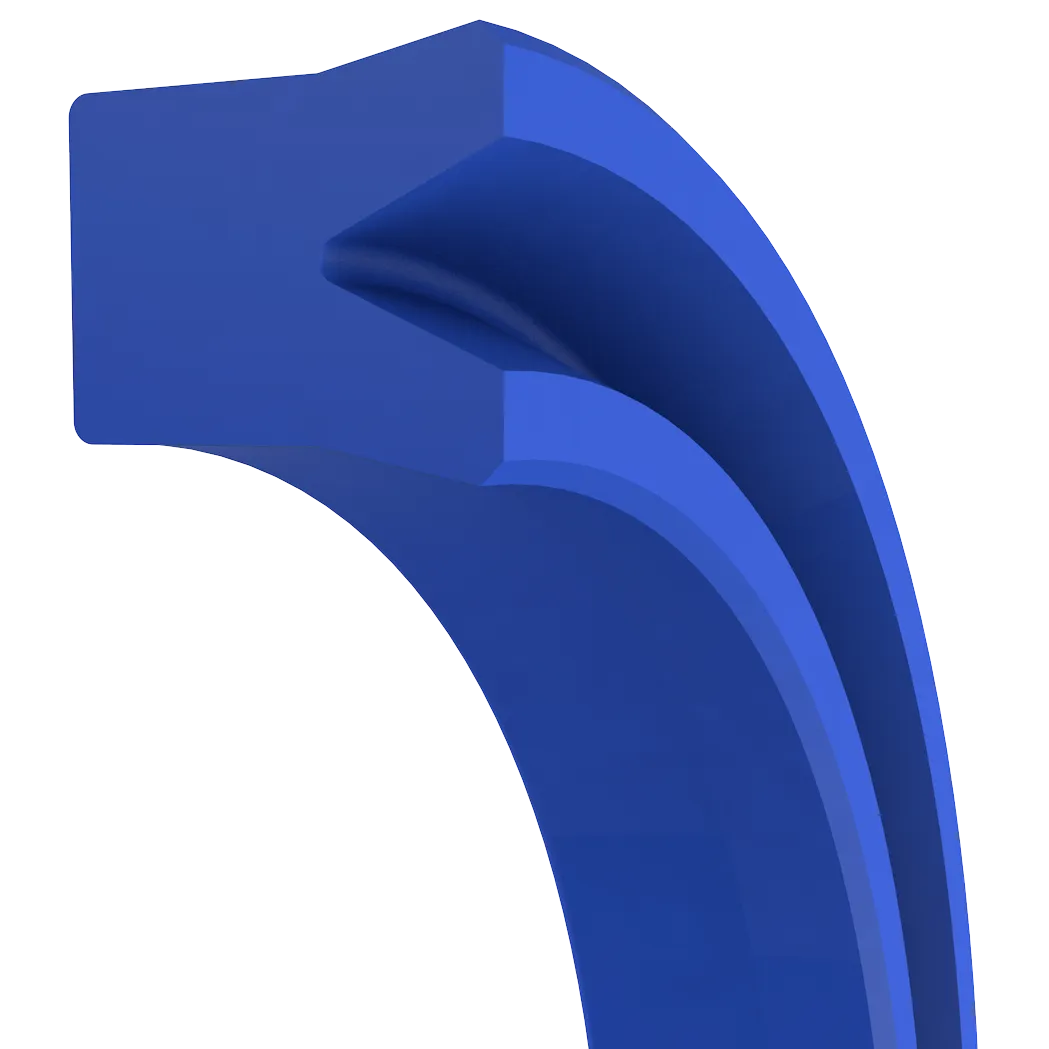

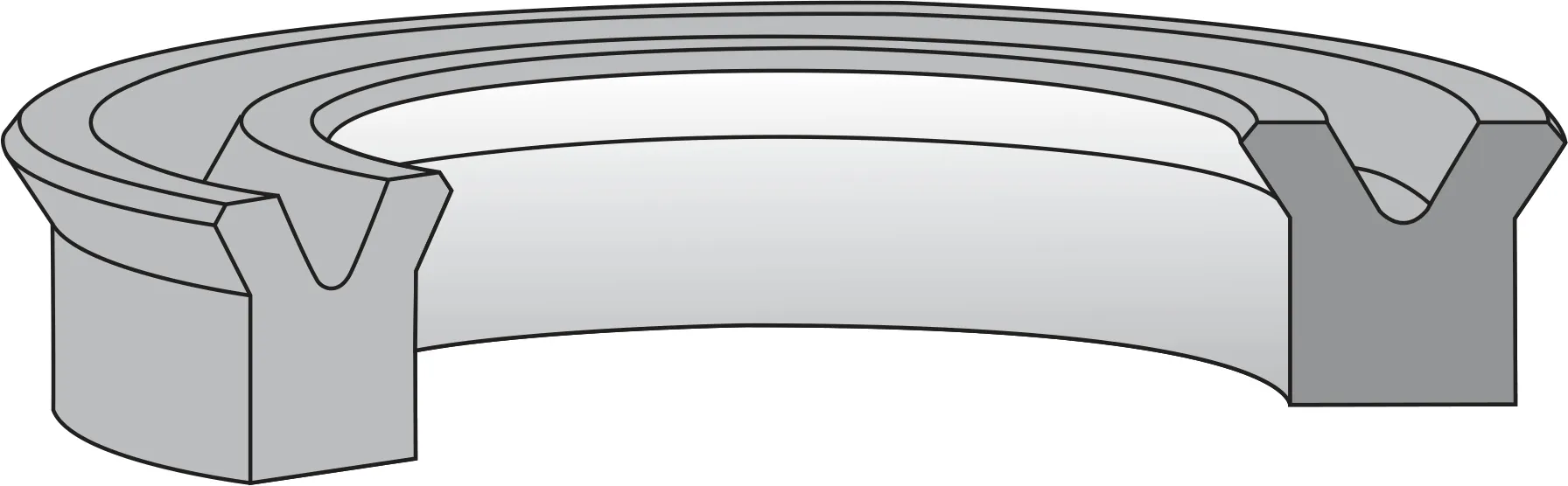

El UNP es una junta en U de perfil simétrico y simple efecto, apta tanto para vástago como para pistón gracias a su geometría reversible. Sus dos labios de estanqueidad con canto ligeramente rebajado garantizan un buen cierre estático y dinámico bajo carga de presión por un solo lado. Es una solución robusta, de montaje sencillo por encaje y amplio rango de aplicación, pensada para cilindros hidráulicos de exigencia moderada en la industria general y la hidráulica móvil.

Montaje

Montaje en ranura cerrada y mecanizada. Achaflanar y desbarbar los cantos del alojamiento y del vástago o pistón, y limpiar bien el alojamiento antes de instalar. No arrastrar la junta sobre cantos vivos, roscas o chaveteros, usando un casquillo de montaje si es necesario. Lubricar el vástago o pistón antes del montaje, calentar la junta en aceite a 80 °C facilita su colocación.

VENTAJAS

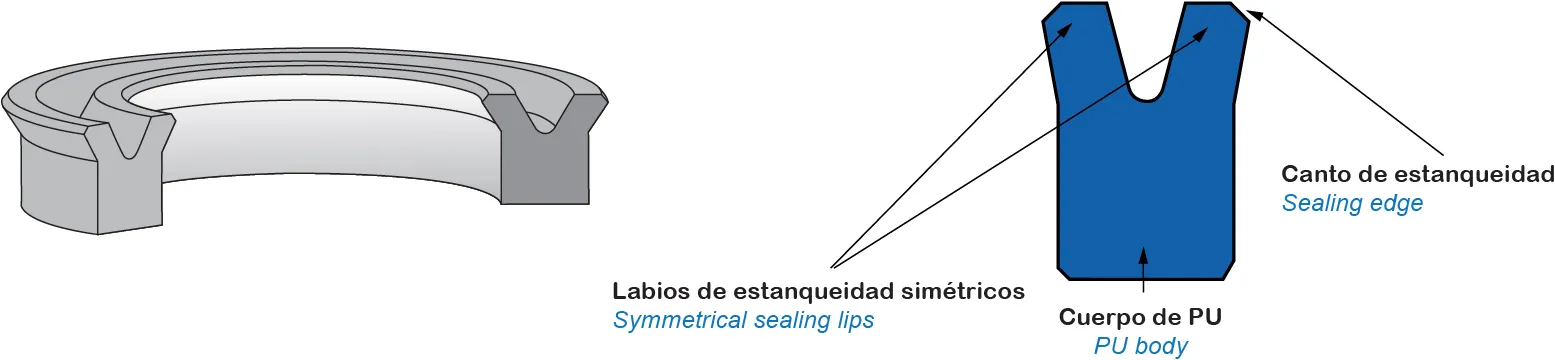

Perfil simétrico que permite el uso como junta de vástago o de pistón.
Simple efecto, para carga de presión por un solo lado.
Buen cierre estático y dinámico.
Diseño robusto de larga vida útil.
Montaje sencillo por encaje (snap-on).
Amplio rango de dimensiones y de aplicación.
Buena relación calidad-precio para aplicaciones de exigencia moderada.

MATERIALES

Fabricado en poliuretano (PU) con durezas de 92 a 95 Shore A, un material de gran resistencia mecánica y a la abrasión que ofrece un excelente comportamiento frente a aceites hidráulicos según DIN 51524, aceites y grasas lubricantes de base mineral y fluidos hidráulicos ignífugos HFA, HFB y HFC.

DATOS TÉCNICOS

NO.	Ød	ØD	b	B	C
U-383.5 UNP	3	8	3.5	4	2.5
U-3106 UNP	3	10	6	7	3.5
U-375 UNP	3	7	5	6	2
U-384.5 UNP	3	8	4.5	5	2.5
U-4125.5 UNP	4	12	5.5	6.5	4
U-4104 UNP	4	10	4	4.5	3
U-4106 UNP	4	10	6	7	3
U-4105 UNP	4	10	5	6	3
U-4124 UNP	4	12	4	4.5	4
U-4104.5 UNP	4	10	4.5	5	3
U-5117 UNP	5	11	7	8	3
U-5115 UNP	5	11	5	6	3
U-5104 UNP	5	10	4	4.5	2.5
U-5105 UNP	5	10	5	6	2.5
U-5125 UNP	5	12	5	6	3.5
U-5144.5 UNP	5	14	4.5	5	4
U-6126 UNP	6	12	6	7	3
U-6108 UNP	6	10	8	9	2
U-6135.5 UNP	6	13	5.5	6.5	3.5
U-6157.5 UNP	6	15	7.5	8.5	4
U-6146 UNP	6	14	6	7	4
U-692 UNP	6	9	2	2.5	2
U-6138 UNP	6	13	8	9	3.5
U-6144 UNP	6	14	4	4.5	4
U-6165 UNP	6	16	5	6	4.5
U-6127 UNP	6	12	7	8	3
U-6103 UNP	6	10	3	3.5	2
U-6155 UNP	6	15	5	6	4
U-6166 UNP	6	16	6	7	4.5
U-6124 UNP	6	12	4	4.5	3
U-6188 UNP	6	18	8	9	5
U-7155 UNP	7	15	5	6	4
U-7147 UNP	7	14	7	8	3.5
U-7157 UNP	7	15	7	8	4
U-7133.5 UNP	7	13	3.5	4	3
U-7122.55 UNP	7	12	2.55	3.05	3
U-8188 UNP	8	18	8	9	4.5
U-8146 UNP	8	14	6	7	3
U-8125 UNP	8	12	5	6	2
U-8189 UNP	8	18	9	10	4.5
U-8156 UNP	8	15	6	7	3.5
U-8165.3 UNP	8	16	5.3	6.3	4
U-8208 UNP	8	20	8	9	5
U-8155 UNP	8	15	5	6	3.5
U-8166 UNP	8	16	6	7	4
U-8168 UNP	8	16	8	9	4
U-8144 UNP	8	14	4	4.5	3
U-8158 UNP	8	15	8	9	3.5
U-8124 UNP	8	12	4	4.5	2
U-8176 UNP	8	17	6	7	4
U-9176 UNP	9	17	6	7	4
U-9196 UNP	9	19	6	7	4.5
U-9164 UNP	9	16	4	4.5	3.5
U-9167 UNP	9	16	7	8	3.5
U-9175.5 UNP	9	17	5.5	6.5	4
U-9158 UNP	9	15	8	9	3
U-9.4142.9 UNP	9.4	14	2.9	3.4	2
U-10208 UNP	10	20	8	9	4.5
U-10226 UNP	10	22	6	7	5
U-10188 UNP	10	18	8	9	4
U-10184 UNP	10	18	4	4.5	4
U-102810 UNP	10	28	10	11	6
U-10186 UNP	10	18	6	7	4
U-102510 UNP	10	25	10	11	5.5
U-10269.5 UNP	10	26	9.5	10.5	6
U-10258 UNP	10	25	8	9	5.5
U-10144 UNP	10	14	4	4.5	2
U-10206.5 UNP	10	20	6.5	7.5	4.5
U-10204.5 UNP	10	20	4.5	5	4.5
U-10228 UNP	10	22	8	9	5
U-10164.5 UNP	10	16	4.5	5	3
U-10206 UNP	10	20	6	7	4.5
U-10185.5 UNP	10	18	5.5	6.5	4
U-10185 UNP	10	18	5	6	4
U-10164 UNP	10	16	4	4.5	3
U-10154 UNP	10	15	4	4.5	2.5
U-10166 UNP	10	16	6	7	3
U-10165 UNP	10	16	5	6	3
U-10207 UNP	10	20	7	8	4.5
U-10229 UNP	10	22	9	10	5
U-10268 UNP	10	26	8	9	6
U-11.219.25 UNP	11.2	19.2	5	6	4
U-1118.355 UNP	11	18.35	5	6	3.5
U-12228 UNP	12	22	8	9	4.5
U-12208 UNP	12	20	8	9	4
U-123210 UNP	12	32	10	11	6
U-122410 UNP	12	24	10	11	5
U-12186 UNP	12	18	6	7	3
U-12184 UNP	12	18	4	4.5	3
U-12185 UNP	12	18	5	6	3
U-12205.5 UNP	12	20	5.5	6.5	4
U-12.725.46.35 UNP	12.7	25.4	6.35	7.35	5
U-12163 UNP	12	16	3	3.5	2
U-12225 UNP	12	22	5	6	4.5
U-12188 UNP	12	18	8	9	3
U-12205 UNP	12	20	5	6	4
U-12225.5 UNP	12	22	5.5	6.5	4.5
U-12258 UNP	12	25	8	9	5
U-12246 UNP	12	24	6	7	5
U-122810 UNP	12	28	10	11	6
U-12227 UNP	12	22	7	8	4.5
U-12226 UNP	12	22	6	7	4.5
U-12173 UNP	12	17	3	3.5	2.5
U-122610 UNP	12	26	10	11	5.5
U-13258 UNP	13	25	8	9	5
U-14248 UNP	14	24	8	9	4.5
U-14225 UNP	14	22	5	6	4
U-14206 UNP	14	20	6	7	3
U-14204 UNP	14	20	4	4.5	3
U-14224 UNP	14	22	4	4.5	4
U-14228 UNP	14	22	8	9	4
U-14.5183.75 UNP	14.5	18	3.75	4.25	2
U-14208 UNP	14	20	8	9	3
U-14328 UNP	14	32	8	9	6
U-14226 UNP	14	22	6	7	4
U-14287 UNP	14	28	7	8	5.5
U-14245 UNP	14	24	5	6	4.5
U-142212 UNP	14	22	12	13	4
U-14246 UNP	14	24	6	7	4.5
U-142810 UNP	14	28	10	11	5.5
U-14205 UNP	14	20	5	6	3
U-15258 UNP	15	25	8	9	4.5
U-15225.5 UNP	15	22	5.5	6.5	3.5
U-152510 UNP	15	25	10	11	4.5
U-15225 UNP	15	22	5	6	3.5
U-15255 UNP	15	25	5	6	4.5
U-15224 UNP	15	22	4	4.5	3.5
U-15256 UNP	15	25	6	7	4.5
U-1521.54.5 UNP	15	21.5	4.5	5	3
U-15215 UNP	15	21	5	6	3
U-15228 UNP	15	22	8	9	3.5
U-15203 UNP	15	20	3	3.5	2.5
U-15213.5 UNP	15	21	3.5	4	3
U-152810 UNP	15	28	10	11	5
U-153010 UNP	15	30	10	11	5.5
U-15308 UNP	15	30	8	9	5.5
U-15288 UNP	15	28	8	9	5
U-15306 UNP	15	30	6	7	5.5
U-16268 UNP	16	26	8	9	4.5
U-16225 UNP	16	22	5	6	3
U-16224 UNP	16	22	4	4.5	3
U-16245 UNP	16	24	5	6	4
U-16307 UNP	16	30	7	8	5.5
U-16246.5 UNP	16	24	6.5	7.5	4
U-16244 UNP	16	24	4	4.5	4
U-163210 UNP	16	32	10	11	6
U-16227 UNP	16	22	7	8	3
U-162610 UNP	16	26	10	11	4.5
U-16249 UNP	16	24	9	10	4
U-16255 UNP	16	25	5	6	4
U-16246 UNP	16	24	6	7	4
U-162210 UNP	16	22	10	11	3
U-16286 UNP	16	28	6	7	5
U-16266 UNP	16	26	6	7	4.5
U-16223 UNP	16	22	3	3.5	3
U-16296 UNP	16	29	6	7	5
U-16265 UNP	16	26	5	6	4.5
U-173210 UNP	17	32	10	11	5.5
U-17254 UNP	17	25	4	4.5	4
U-17287 UNP	17	28	7	8	5
U-18288 UNP	18	28	8	9	4.5
U-18306 UNP	18	30	6	7	5
U-18265 UNP	18	26	5	6	4
U-18244 UNP	18	24	4	4.5	3
U-18255.5 UNP	18	25	5.5	6.5	3.5
U-18256 UNP	18	25	6	7	3.5
U-18286 UNP	18	28	6	7	4.5
U-18248 UNP	18	24	8	9	3
U-18264 UNP	18	26	4	4.5	4
U-18307.5 UNP	18	30	7.5	8.5	5
U-18308.5 UNP	18	30	8.5	9.5	5
U-183010 UNP	18	30	10	11	5
U-18327 UNP	18	32	7	8	5.5
U-18255 UNP	18	25	5	6	3.5
U-19256 UNP	19	25	6	7	3
U-19.0523.914.81 UNP	19.05	23.91	4.81	5.81	2
U-19266.7 UNP	19	26	6.7	7.7	3.5
U-19255 UNP	19	25	5	6	3
U-19266 UNP	19	26	6	7	3.5
U-20308 UNP	20	30	8	9	4.5
U-20285 UNP	20	28	5	6	4
U-203010 UNP	20	30	10	11	4.5
U-20325 UNP	20	32	5	6	5
U-203612 UNP	20	36	12	13	6
U-20284 UNP	20	28	4	4.5	4
U-20253 UNP	20	25	3	3.5	2.5
U-203610 UNP	20	36	10	11	6
U-204012 UNP	20	40	12	13	6
U-203211 UNP	20	32	11	12	5
U-203512 UNP	20	35	12	13	5.5
U-20253.5 UNP	20	25	3.5	4	2.5
U-203510 UNP	20	35	10	11	5.5
U-204010 UNP	20	40	10	11	6
U-20409 UNP	20	40	9	10	6
U-20368 UNP	20	36	8	9	6
U-20243 UNP	20	24	3	3.5	2
U-20288 UNP	20	28	8	9	4
U-20328 UNP	20	32	8	9	5
U-20266 UNP	20	26	6	7	3
U-20265 UNP	20	26	5	6	3
U-20357 UNP	20	35	7	8	5.5
U-20304 UNP	20	30	4	4.5	4.5
U-204212 UNP	20	42	12	13	6
U-20285.5 UNP	20	28	5.5	6.5	4
U-20255 UNP	20	25	5	6	2.5
U-20264 UNP	20	26	4	4.5	3
U-202810 UNP	20	28	10	11	4
U-20274 UNP	20	27	4	4.5	3.5
U-203310 UNP	20	33	10	11	5
U-20276 UNP	20	27	6	7	3.5
U-20327.5 UNP	20	32	7.5	8.5	5
U-20306 UNP	20	30	6	7	4.5
U-20326 UNP	20	32	6	7	5
U-20286 UNP	20	28	6	7	4
U-20305 UNP	20	30	5	6	4.5
U-22328 UNP	22	32	8	9	4.5
U-22327 UNP	22	32	7	8	4.5
U-224210 UNP	22	42	10	11	6
U-223410 UNP	22	34	10	11	5
U-22326 UNP	22	32	6	7	4.5
U-224010 UNP	22	40	10	11	6
U-22.432.48 UNP	22.4	32.4	8	9	4.5
U-22308 UNP	22	30	8	9	4
U-22.4305 UNP	22.4	30	5	6	3.5
U-22335.5 UNP	22	33	5.5	6.5	5
U-22386 UNP	22	38	6	7	6
U-22305 UNP	22	30	5	6	4
U-223810 UNP	22	38	10	11	6
U-223210 UNP	22	32	10	11	4.5
U-22325 UNP	22	32	5	6	4.5
U-223010 UNP	22	30	10	11	4
U-224612 UNP	22	46	12	13	7
U-22346 UNP	22	34	6	7	5
U-22306 UNP	22	30	6	7	4
U-23357 UNP	23	35	7	8	5
U-23.531.55 UNP	23.5	31.5	5	6	4
U-24345 UNP	24	34	5	6	4.5
U-24324 UNP	24	32	4	4.5	4
U-24408 UNP	24	40	8	9	6
U-24328 UNP	24	32	8	9	4
U-24325 UNP	24	32	5	6	4
U-24344 UNP	24	34	4	4.5	4.5
U-24.5325 UNP	24.5	32	5	6	3.5
U-254010 UNP	25	40	10	11	5.5
U-25334 UNP	25	33	4	4.5	4
U-253510 UNP	25	35	10	11	4.5
U-25366.9 UNP	25	36	6.9	7.9	5
U-25355 UNP	25	35	5	6	4.5
U-25357 UNP	25	35	7	8	4.5
U-25358 UNP	25	35	8	9	4.5
U-25377 UNP	25	37	7	8	5
U-25389 UNP	25	38	9	10	5
U-254510 UNP	25	45	10	11	6
U-25327 UNP	25	32	7	8	3.5
U-25336.5 UNP	25	33	6.5	7.5	4
U-25387 UNP	25	38	7	8	5
U-25336 UNP	25	33	6	7	4
U-25335.5 UNP	25	33	5.5	6.5	4
U-25407.5 UNP	25	40	7.5	8.5	5.5
U-25.431.756.35 UNP	25.4	31.75	6.35	7.35	3
U-25386 UNP	25	38	6	7	5
U-25325 UNP	25	32	5	6	3.5
U-25313 UNP	25	31	3	3.5	3
U-253810 UNP	25	38	10	11	5
U-255012 UNP	25	50	12	13	7
U-25324 UNP	25	32	4	4.5	3.5
U-25337 UNP	25	33	7	8	4
U-254011 UNP	25	40	11	12	5.5
U-25356 UNP	25	35	6	7	4.5
U-25335 UNP	25	33	5	6	4
U-26428 UNP	26	42	8	9	6
U-27354 UNP	27	35	4	4.5	4
U-27386 UNP	27	38	6	7	5
U-27366 UNP	27	36	6	7	4
U-2832.83 UNP	28	32.8	3	3.5	2
U-284310 UNP	28	43	10	11	5.5
U-28366 UNP	28	36	6	7	4
U-28365 UNP	28	36	5	6	4
U-283810 UNP	28	38	10	11	4.5
U-28448 UNP	28	44	8	9	6
U-28408 UNP	28	40	8	9	5
U-28368 UNP	28	36	8	9	4
U-28336 UNP	28	33	6	7	2.5
U-28388 UNP	28	38	8	9	4.5
U-2835.55 UNP	28	35.5	5	6	3.5
U-28355 UNP	28	35	5	6	3.5
U-284010 UNP	28	40	10	11	5
U-28387 UNP	28	38	7	8	4.5
U-28333 UNP	28	33	3	3.5	2.5
U-283610 UNP	28	36	10	11	5
U-28385 UNP	28	38	5	6	4.5
U-28488.5 UNP	28	48	8.5	9.5	6
U-28364 UNP	28	36	4	4.5	4
U-28406 UNP	28	40	6	7	5
U-284810 UNP	28	48	10	11	6
U-284812 UNP	28	48	12	13	6
U-28356 UNP	28	35	6	7	3.5
U-304510 UNP	30	45	10	11	5.5
U-304010 UNP	30	40	10	11	4.5
U-30385.5 UNP	30	38	5.5	6.5	4
U-30406 UNP	30	40	6	7	4.5
U-30376 UNP	30	37	6	7	3.5
U-30386 UNP	30	38	6	7	4
U-30363 UNP	30	36	3	3.5	3
U-30459 UNP	30	45	9	10	5.5
U-30508 UNP	30	50	8	9	6
U-30405 UNP	30	40	5	6	4.5
U-304310 UNP	30	43	10	11	5
U-30385 UNP	30	38	5	6	4
U-30378 UNP	30	37	8	9	3.5
U-30406.5 UNP	30	40	6.5	7.5	4.5
U-303810 UNP	30	38	10	11	4
U-30408 UNP	30	40	8	9	4.5
U-304210 UNP	30	42	10	11	5
U-305010 UNP	30	50	10	11	6
U-305012 UNP	30	50	12	13	6
U-30407 UNP	30	40	7	8	4.5
U-30384 UNP	30	38	4	4.5	4
U-31.541.56 UNP	31.5	41.5	6	7	4.5
U-31.546.510.2 UNP	31.5	46.5	10.2	11.2	5.5
U-324710 UNP	32	47	10	11	5.5
U-32408 UNP	32	40	8	9	4
U-32405 UNP	32	40	5	6	4
U-32446.35 UNP	32	44	6.35	7.35	5
U-32405.7 UNP	32	40	5.7	6.7	4
U-32428 UNP	32	42	8	9	4.5
U-32427 UNP	32	42	7	8	4.5
U-324010 UNP	32	40	10	11	4
U-325010 UNP	32	50	10	11	6
U-324210 UNP	32	42	10	11	4.5
U-324411.5 UNP	32	44	11.5	12.5	5
U-32386 UNP	32	38	6	7	3
U-325210 UNP	32	52	10	11	6
U-32446 UNP	32	44	6	7	5
U-32458 UNP	32	45	8	9	5
U-324810 UNP	32	48	10	11	6
U-32426 UNP	32	42	6	7	4.5
U-324510 UNP	32	45	10	11	5
U-325012 UNP	32	50	12	13	6
U-32404 UNP	32	40	4	4.5	4
U-33436 UNP	33	43	6	7	4.5
U-334310 UNP	33	43	10	11	4.5
U-33404 UNP	33	40	4	4.5	3.5
U-334510 UNP	33	45	10	11	5
U-34445 UNP	34	44	5	6	4.5
U-34449 UNP	34	44	9	10	4.5
U-344210 UNP	34	42	10	11	5
U-355010 UNP	35	50	10	11	5.5
U-35436 UNP	35	43	6	7	4
U-35458 UNP	35	45	8	9	4.5
U-35457 UNP	35	45	7	8	4.5
U-35.5456 UNP	35.5	45	6	7	4
U-35468 UNP	35	46	8	9	5
U-35488 UNP	35	48	8	9	5
U-354810 UNP	35	48	10	11	5
U-35424 UNP	35	42	4	4.5	3.5
U-35437 UNP	35	43	7	8	4
U-35456 UNP	35	45	6	7	4.5
U-35476 UNP	35	47	6	7	5
U-35507.5 UNP	35	50	7.5	8.5	5.5
U-354510 UNP	35	45	10	11	4.5
U-355510 UNP	35	55	10	11	6
U-355512 UNP	35	55	12	13	6
U-355212 UNP	35	52	12	13	6
U-35508 UNP	35	50	8	9	5.5
U-365110 UNP	36	51	10	11	5.5
U-36517.1 UNP	36	51	7.1	8.1	5.5
U-364810 UNP	36	48	10	11	5
U-36445.7 UNP	36	44	5.7	6.7	4
U-36448 UNP	36	44	8	9	4
U-36508 UNP	36	50	8	9	5.5
U-36467 UNP	36	46	7	8	4.5
U-36486 UNP	36	48	6	7	5
U-36466 UNP	36	46	6	7	4.5
U-36444 UNP	36	44	4	4.5	4
U-36465 UNP	36	46	5	6	4.5
U-36436 UNP	36	43	6	7	3.5
U-36468 UNP	36	46	8	9	4.5
U-3852.59.5 UNP	38	52.5	9.5	10.5	5.5
U-385510 UNP	38	55	10	11	6
U-38455 UNP	38	45	5	6	5.5
U-38456 UNP	38	45	6	7	3.5
U-38487.5 UNP	38	48	7.5	8.5	4.5
U-38488 UNP	38	48	8	9	4.5
U-38459 UNP	38	45	9	10	3.5
U-385810 UNP	38	58	10	11	6
U-38506 UNP	38	50	6	7	5
U-385010 UNP	38	50	10	11	5
U-38.150.86.35 UNP	38.1	50.8	6.35	7.35	5
U-38.150.87.14 UNP	38.1	50.8	7.14	8.14	5
U-38509 UNP	38	50	9	10	5
U-38486 UNP	38	48	6	7	4.5
U-38.147.626.35 UNP	38.1	47.62	6.35	7.35	4
U-395810 UNP	39	58	10	11	6
U-405510 UNP	40	55	10	11	5.5
U-40506 UNP	40	50	6	7	4.5
U-405212 UNP	40	52	12	13	5
U-406010 UNP	40	60	10	11	6
U-406012 UNP	40	60	12	13	6
U-40509 UNP	40	50	9	10	4.5
U-40507 UNP	40	50	7	8	4.5
U-405610 UNP	40	56	10	11	6
U-40566 UNP	40	56	6	7	6
U-40488 UNP	40	48	8	9	4
U-405910 UNP	40	59	10	11	6
U-405510.5 UNP	40	55	10.5	11.5	5.5
U-40505 UNP	40	50	5	6	4.5
U-40558 UNP	40	55	8	9	5.5
U-405011 UNP	40	50	11	12	4.5
U-406512 UNP	40	65	12	13	7
U-404810 UNP	40	48	10	11	4
U-405512 UNP	40	55	12	13	5.5
U-405210 UNP	40	52	10	11	5
U-40528 UNP	40	52	8	9	5
U-40506.5 UNP	40	50	6.5	7.5	4.5
U-406212 UNP	40	62	12	13	6
U-40508 UNP	40	50	8	9	4.5
U-406510 UNP	40	65	10	11	7
U-40568 UNP	40	56	8	9	6
U-404811 UNP	40	48	11	12	4
U-40557 UNP	40	55	7	8	5.5
U-40526 UNP	40	52	6	7	5
U-405010 UNP	40	50	10	11	4.5
U-42505 UNP	42	50	5	6	4
U-426212 UNP	42	62	12	13	6
U-42558 UNP	42	55	8	9	5
U-42578 UNP	42	57	8	9	5.5
U-42508 UNP	42	50	8	9	4
U-425111 UNP	42	51	11	12	4
U-425210 UNP	42	52	10	11	4.5
U-42506 UNP	42	50	6	7	4
U-42527 UNP	42	52	7	8	4.5
U-425310 UNP	42	53	10	11	5
U-426310 UNP	42	63	10	11	6
U-436310 UNP	43	63	10	11	6
U-44579 UNP	44	57	9	10	5
U-456010 UNP	45	60	10	11	5.5
U-45537 UNP	45	53	7	8	4
U-45556 UNP	45	55	6	7	4.5
U-45538 UNP	45	53	8	9	4
U-45626 UNP	45	62	6	7	6
U-45558 UNP	45	55	8	9	4.5
U-45557 UNP	45	55	7	8	4.5
U-45567 UNP	45	56	7	8	5
U-455310 UNP	45	53	10	11	4
U-45568 UNP	45	56	8	9	5
U-455510 UNP	45	55	10	11	4.5
U-45556.5 UNP	45	55	6.5	7.5	4.5
U-456310 UNP	45	63	10	11	6
U-455810 UNP	45	58	10	11	5
U-45576 UNP	45	57	6	7	5
U-456312 UNP	45	63	12	13	6
U-456510 UNP	45	65	10	11	6
U-456512 UNP	45	65	12	13	6
U-457012 UNP	45	70	12	13	7
U-467012 UNP	46	70	12	13	7
U-46567 UNP	46	56	7	8	4.5
U-476512 UNP	47	65	12	13	6
U-47.6263.511.5 UNP	47.62	63.5	11.5	12.5	6
U-47.6257.156.35 UNP	47.62	57.15	6.35	7.35	4
U-486312 UNP	48	63	12	13	5.5
U-48609 UNP	48	60	9	10	5
U-486812 UNP	48	68	12	13	6
U-48586.5 UNP	48	58	6.5	7.5	4.5
U-486810 UNP	48	68	10	11	6
U-48606 UNP	48	60	6	7	5
U-486310 UNP	48	63	10	11	5.5
U-485810 UNP	48	58	10	11	4.5
U-486010 UNP	48	60	10	11	5
U-506510 UNP	50	65	10	11	5.5
U-506010 UNP	50	60	10	11	4.5
U-50629 UNP	50	62	9	10	5
U-50605 UNP	50	60	5	6	4.5
U-50638 UNP	50	63	8	9	5
U-50639 UNP	50	63	9	10	5
U-506512 UNP	50	65	12	13	5.5
U-506812 UNP	50	68	12	13	6
U-50708 UNP	50	70	8	9	6
U-507010 UNP	50	70	10	11	6
U-507012 UNP	50	70	12	13	6
U-50.863.59.52 UNP	50.8	63.5	9.52	10.52	5
U-50608 UNP	50	60	8	9	4.5
U-50.860.34.76 UNP	50.8	60.3	4.76	5.76	4
U-50659 UNP	50	65	9	10	5.5
U-506310 UNP	50	63	10	11	5
U-50637 UNP	50	63	7	8	5
U-50688 UNP	50	68	8	9	6
U-50606.5 UNP	50	60	6.5	7.5	4.5
U-50.863.56.35 UNP	50.8	63.5	6.35	7.35	5
U-50.866.677.92 UNP	50.8	66.67	7.92	8.92	6
U-50588 UNP	50	58	8	9	4
U-50606 UNP	50	60	6	7	4.5
U-506012 UNP	50	60	12	13	4.5
U-50607 UNP	50	60	7	8	4.5
U-505710 UNP	50	57	10	11	3.5
U-50636 UNP	50	63	6	7	5
U-50626 UNP	50	62	6	7	5
U-526212 UNP	52	62	12	13	4.5
U-52626 UNP	52	62	6	7	4.5
U-527210 UNP	52	72	10	11	6
U-52627 UNP	52	62	7	8	4.5
U-52628 UNP	52	62	8	9	4.5
U-536312 UNP	53	63	12	13	4.5
U-53637.5 UNP	53	63	7.5	8.5	4.5
U-53636.5 UNP	53	63	6.5	7.5	4.5
U-53636 UNP	53	63	6	7	4.5
U-537312 UNP	53	73	12	13	6
U-53635 UNP	53	63	5	6	4.5
U-53637 UNP	53	63	7	8	4.5
U-53638 UNP	53	63	8	9	4.5
U-557512 UNP	55	75	12	13	6
U-556512 UNP	55	65	12	13	4.5
U-55656 UNP	55	65	6	7	4.5
U-556710 UNP	55	67	10	11	5
U-557510 UNP	55	75	10	11	6
U-558010 UNP	55	80	10	11	7
U-55658 UNP	55	65	8	9	4.5
U-556310 UNP	55	63	10	11	4
U-55656.5 UNP	55	65	6.5	7.5	4.5
U-55709 UNP	55	70	9	10	5.5
U-55655 UNP	55	65	5	6	4.5
U-55707.5 UNP	55	70	7.5	8.5	5.5
U-557010 UNP	55	70	10	11	5.5
U-557012 UNP	55	70	12	13	5.5
U-558015 UNP	55	80	15	16	7
U-558012 UNP	55	80	12	13	7
U-556510 UNP	55	65	10	11	4.5
U-55638 UNP	55	63	8	9	4
U-567612 UNP	56	76	12	13	6
U-568015 UNP	56	80	15	16	7
U-567110 UNP	56	71	10	11	5.5
U-56665 UNP	56	66	5	6	4.5
U-567012 UNP	56	70	12	13	5.5
U-56666 UNP	56	66	6	7	4.5
U-566610 UNP	56	66	10	11	4.5
U-57.1569.8510 UNP	57.15	69.85	10	11	5
U-57.1576.210 UNP	57.15	76.2	10	11	6
U-58706 UNP	58	70	6	7	5
U-58686 UNP	58	68	6	7	4.5
U-608012 UNP	60	80	12	13	6
U-608010 UNP	60	80	10	11	6
U-60688 UNP	60	68	8	9	4
U-608016 UNP	60	80	16	17	6
U-60717 UNP	60	71	7	8	5
U-60.3373.027.95 UNP	60.33	73.02	7.95	8.95	5
U-60708 UNP	60	70	8	9	4.5
U-607012 UNP	60	70	12	13	4.5
U-607512 UNP	60	75	12	13	5.5
U-607013 UNP	60	70	13	14	4.5
U-60706 UNP	60	70	6	7	4.5
U-60707 UNP	60	70	7	8	4.5
U-607510 UNP	60	75	10	11	5.5
U-60705 UNP	60	70	5	6	4.5
U-607010 UNP	60	70	10	11	4.5
U-618012 UNP	61	80	12	13	6
U-61716 UNP	61	71	6	7	4.5
U-61698 UNP	61	69	8	9	4
U-638312 UNP	63	83	12	13	6
U-63726 UNP	63	72	6	7	4
U-63738 UNP	63	73	8	9	4.5
U-637510 UNP	63	75	10	11	5
U-63.582.5514.28 UNP	63.5	82.55	14.28	15.28	6
U-63.576.210.5 UNP	63.5	76.2	10.5	11.5	5
U-63.576.29.52 UNP	63.5	76.2	9.52	10.52	5
U-63736 UNP	63	73	6	7	4.5
U-637310 UNP	63	73	10	11	4.5
U-637810 UNP	63	78	10	11	5.5
U-63.576.27.92 UNP	63.5	76.2	7.92	8.92	5
U-658512 UNP	65	85	12	13	6
U-658012 UNP	65	80	12	13	5.5
U-658510 UNP	65	85	10	11	6
U-659012 UNP	65	90	12	13	7
U-658011 UNP	65	80	11	12	5.5
U-65908 UNP	65	90	8	9	7
U-659013 UNP	65	90	13	14	7
U-659015 UNP	65	90	15	16	7
U-657510 UNP	65	75	10	11	4.5
U-65756 UNP	65	75	6	7	4.5
U-657512 UNP	65	75	12	13	4.5
U-658010 UNP	65	80	10	11	5.5
U-66776 UNP	66	77	6	7	5
U-66766 UNP	66	76	6	7	4.5
U-67776 UNP	67	77	6	7	4.5
U-68769 UNP	68	76	9	10	4
U-688012 UNP	68	80	12	13	5
U-687810 UNP	68	78	10	11	4.5
U-709012 UNP	70	90	12	13	6
U-708012 UNP	70	80	12	13	4.5
U-70829.7 UNP	70	82	9.7	10.7	5
U-70856 UNP	70	85	6	7	5.5
U-70806 UNP	70	80	6	7	4.5
U-708410 UNP	70	84	10	11	5.5
U-708010 UNP	70	80	10	11	4.5
U-708510 UNP	70	85	10	11	5.5
U-70858 UNP	70	85	8	9	5.5
U-70857.5 UNP	70	85	7.5	8.5	5.5
U-709015 UNP	70	90	15	16	6
U-70859 UNP	70	85	9	10	5.5
U-70808 UNP	70	80	8	9	4.5
U-708210 UNP	70	82	10	11	5
U-70829 UNP	70	82	9	10	5
U-70807.5 UNP	70	80	7.5	8.5	4.5
U-708512 UNP	70	85	12	13	5.5
U-70805.5 UNP	70	80	5.5	6.5	4.5
U-709010 UNP	70	90	10	11	6
U-70805 UNP	70	80	5	6	4.5
U-70807 UNP	70	80	7	8	4.5
U-70789 UNP	70	78	9	10	4
U-70806.7 UNP	70	80	6.7	7.7	4.5
U-71806 UNP	71	80	6	7	4
U-729010 UNP	72	90	10	11	6
U-759512 UNP	75	95	12	13	6
U-758512 UNP	75	85	12	13	4.5
U-759012 UNP	75	90	12	13	5.5
U-759010 UNP	75	90	10	11	5.5
U-75857 UNP	75	85	7	8	4.5
U-75856 UNP	75	85	6	7	4.5
U-75909 UNP	75	90	9	10	5.5
U-759510 UNP	75	95	10	11	6
U-758510 UNP	75	85	10	11	4.5
U-76.295.2510 UNP	76.2	95.25	10	11	6
U-76.288.99.52 UNP	76.2	88.9	9.52	10.52	5
U-76848 UNP	76	84	8	9	4
U-76.295.2512.7 UNP	76.2	95.25	12.7	13.7	6
U-76.292.077.92 UNP	76.2	92.07	7.92	8.92	6
U-8010012 UNP	80	100	12	13	6
U-80905.4 UNP	80	90	5.4	6.4	4.5
U-80905 UNP	80	90	5	6	4.5
U-809011 UNP	80	90	11	12	4.5
U-809510 UNP	80	95	10	11	5.5
U-80907 UNP	80	90	7	8	4.5
U-8010015 UNP	80	100	15	16	6
U-8010515 UNP	80	105	15	16	7
U-80909 UNP	80	90	9	10	4.5
U-809210 UNP	80	92	10	11	5
U-809010 UNP	80	90	10	11	4.5
U-80958 UNP	80	95	8	9	5.5
U-80959 UNP	80	95	9	10	5.5
U-809512 UNP	80	95	12	13	5.5
U-80906 UNP	80	90	6	7	4.5
U-809012 UNP	80	90	12	13	4.5
U-8010010 UNP	80	100	10	11	6
U-8010510 UNP	80	105	10	11	7
U-829210 UNP	82	92	10	11	4.5
U-8210210 UNP	82	102	10	11	6
U-82.55101.614.8 UNP	82.55	101.6	14.8	15.8	6
U-829510 UNP	82	95	10	11	5
U-8510512 UNP	85	105	12	13	6
U-851029 UNP	85	102	9	10	6
U-85956 UNP	85	95	6	7	4.5
U-8510510 UNP	85	105	10	11	6
U-85958.5 UNP	85	95	8.5	9.5	4.5
U-85959 UNP	85	95	9	10	4.5
U-8511012 UNP	85	110	12	13	7
U-851009 UNP	85	100	9	10	5.5
U-8510025 UNP	85	100	25	26	5.5
U-8510012 UNP	85	100	12	13	5.5
U-859510 UNP	85	95	10	11	4.5
U-8510010 UNP	85	100	10	11	5.5
U-8510515 UNP	85	105	15	16	6
U-86966 UNP	86	96	6	7	4.5
U-88.8100.59.5 UNP	88.8	100.5	9.5	10.5	5.5
U-88.8103.3512 UNP	88.8	103.35	12	13	5.5
U-88.9107.9512.7 UNP	88.9	107.95	12.7	13.7	6
U-88986 UNP	88	98	6	7	4.5
U-9011012 UNP	90	110	12	13	6
U-901006.8 UNP	90	100	6.8	7.8	4.5
U-9010010 UNP	90	100	10	11	4.5
U-9010510 UNP	90	105	10	11	5.5
U-9010012 UNP	90	100	12	13	4.5
U-901005 UNP	90	100	5	6	4.5
U-9012015 UNP	90	120	15	16	7
U-901059 UNP	90	105	9	10	5.5
U-901008 UNP	90	100	8	9	4.5
U-9011010 UNP	90	110	10	11	6
U-9011015 UNP	90	110	15	16	6
U-9011512 UNP	90	115	12	13	7
U-9010512 UNP	90	105	12	13	5.5
U-901006 UNP	90	100	6	7	4.5
U-9511010 UNP	95	110	10	11	5.5
U-9511512 UNP	95	115	12	13	6
U-9511515 UNP	95	115	15	16	6
U-9512012 UNP	95	120	12	13	7
U-951109 UNP	95	110	9	10	5.5
U-9511012 UNP	95	110	12	13	5.5
U-9512515 UNP	95	125	15	16	7
U-9610511 UNP	96	105	11	12	4
U-981129 UNP	98	112	9	10	5.5
U-10012515 UNP	100	125	15	16	7
U-10012012 UNP	100	120	12	13	6
U-10011510 UNP	100	115	10	11	5.5
U-10011513 UNP	100	115	13	14	5.5
U-10012010 UNP	100	120	10	11	6
U-10012512 UNP	100	125	12	13	7
U-10012015 UNP	100	120	15	16	6
U-10013018 UNP	100	130	18	19	7
U-10011312.5 UNP	100	113	12.5	13.5	5
U-1001105 UNP	100	110	5	6	4.5
U-10013015 UNP	100	130	15	16	7
U-1001108 UNP	100	110	8	9	4.5
U-10011512 UNP	100	115	12	13	5.5
U-1001159 UNP	100	115	9	10	5.5
U-101.5114.39.5 UNP	101.5	114.3	9.5	10.5	5
U-101.612719.5 UNP	101.6	127	19.5	20.5	7
U-10513015 UNP	105	130	15	16	7
U-1051208 UNP	105	120	8	9	5.5
U-10512011 UNP	105	120	11	12	5.5
U-10513018 UNP	105	130	18	19	7
U-10512012 UNP	105	120	12	13	5.5
U-10512015 UNP	105	120	15	16	5.5
U-10512512 UNP	105	125	12	13	6
U-10512515 UNP	105	125	15	16	6
U-10511512 UNP	105	115	12	13	4.5
U-1051209 UNP	105	120	9	10	5.5
U-10512510 UNP	105	125	10	11	6
U-1061208.5 UNP	106	120	8.5	9.5	5.5
U-1061209 UNP	106	120	9	10	5.5
U-10713015 UNP	107	130	15	16	7
U-11013518 UNP	110	135	18	19	7
U-1101208 UNP	110	120	8	9	4.5
U-11013512 UNP	110	135	12	13	7
U-11014018 UNP	110	140	18	19	7
U-11012512 UNP	110	125	12	13	5.5
U-11013010 UNP	110	130	10	11	6
U-11013015 UNP	110	130	15	16	6
U-11013012 UNP	110	130	12	13	6
U-11013011.5 UNP	110	130	11.5	12.5	6
U-11013018 UNP	110	130	18	19	6
U-1101259 UNP	110	125	9	10	5.5
U-1121259 UNP	112	125	9	10	5
U-1121258.5 UNP	112	125	8.5	9.5	5
U-114.81255.7 UNP	114.8	125	5.7	6.7	4.5
U-11514018 UNP	115	140	18	19	7
U-1151258 UNP	115	125	8	9	4.5
U-11513015 UNP	115	130	15	16	5.5
U-11513515 UNP	115	135	15	16	6
U-11513010 UNP	115	130	10	11	5.5
U-11512515 UNP	115	125	15	16	4.5
U-1151309 UNP	115	130	9	10	5.5
U-11514015 UNP	115	140	15	16	7
U-11512512 UNP	115	125	12	13	4.5
U-11514515 UNP	115	145	15	16	7
U-11514512 UNP	115	145	12	13	7
U-118.071275.9 UNP	118.07	127	5.9	6.9	4.5
U-1181328.5 UNP	118	132	8.5	9.5	5.5
U-12014518 UNP	120	145	18	19	7
U-12015015 UNP	120	150	15	16	7
U-12013515 UNP	120	135	15	16	5.5
U-12013210 UNP	120	132	10	11	5
U-12015018 UNP	120	150	18	19	7
U-12014010 UNP	120	140	10	11	6
U-1201307 UNP	120	130	7	8	4.5
U-12014015 UNP	120	140	15	16	6
U-1201286 UNP	120	128	6	7	4
U-12014012 UNP	120	140	12	13	6
U-1201359 UNP	120	135	9	10	5.5
U-12515518 UNP	125	155	18	19	7
U-12515018 UNP	125	150	18	19	7
U-12514011 UNP	125	140	11	12	5.5
U-12514515 UNP	125	145	15	16	6
U-12514510 UNP	125	145	10	11	6
U-1251409 UNP	125	140	9	10	5.5
U-1251408.5 UNP	125	140	8.5	9.5	5.5
U-12515515 UNP	125	155	15	16	7
U-12715116 UNP	127	151	16	17	7
U-127152.419.5 UNP	127	152.4	19.5	20.5	7
U-13015015 UNP	130	150	15	16	6
U-13016018 UNP	130	160	18	19	7
U-1301408 UNP	130	140	8	9	4.5
U-13015213 UNP	130	152	13	14	6
U-13016012 UNP	130	160	12	13	7
U-13016015 UNP	130	160	15	16	7
U-1301459 UNP	130	145	9	10	5.5
U-1301405 UNP	130	140	5	6	4.5
U-13015016 UNP	130	150	16	17	6
U-13515015 UNP	135	150	15	16	5.5
U-13516515 UNP	135	165	15	16	7
U-1351509 UNP	135	150	9	10	5.5
U-1361509 UNP	136	150	9	10	5.5
U-137.515210.9 UNP	137.5	152	10.9	11.9	5.5
U-14017018 UNP	140	170	18	19	7
U-14016015 UNP	140	160	15	16	6
U-14016016 UNP	140	160	16	17	6
U-1401608 UNP	140	160	8	9	6
U-14016010 UNP	140	160	10	11	6
U-14016518 UNP	140	165	18	19	7
U-1401559 UNP	140	155	9	10	5.5
U-14016012 UNP	140	160	12	13	6
U-1401506 UNP	140	150	6	7	4.5
U-14016515 UNP	140	165	15	16	7
U-1451608 UNP	145	160	8	9	5.5
U-14517018 UNP	145	170	18	19	7
U-14517518 UNP	145	175	18	19	7
U-1451609 UNP	145	160	9	10	5.5
U-15018018 UNP	150	180	18	19	7
U-15017015 UNP	150	170	15	16	6
U-15018015 UNP	150	180	15	16	7
U-15017012 UNP	150	170	12	13	6
U-1501659 UNP	150	165	9	10	5.5
U-15016510 UNP	150	165	10	11	5.5
U-15116312.7 UNP	151	163	12.7	13.7	5.5
U-152.4177.819.5 UNP	152.4	177.8	19.5	20.5	7
U-15517514 UNP	155	175	14	15	6
U-15517515 UNP	155	175	15	16	6
U-1551709 UNP	155	170	9	10	5.5
U-16019022 UNP	160	190	22	23	7
U-16018015 UNP	160	180	15	16	6
U-16019517 UNP	160	195	17	18	9
U-1601759 UNP	160	175	9	10	5.5
U-16018515 UNP	160	185	15	16	7
U-16518515 UNP	165	185	15	16	6
U-16519520 UNP	165	195	20	21	7
U-1651809 UNP	165	180	9	10	5.5
U-16518015 UNP	165	180	15	16	5.5
U-17020015 UNP	170	200	15	16	7
U-17020022 UNP	170	200	22	23	7
U-17019015 UNP	170	190	15	16	6
U-17019010 UNP	170	190	10	11	6
U-1701859 UNP	170	185	9	10	5.5
U-17020018 UNP	170	200	18	19	7
U-17521520 UNP	175	215	20	21	9
U-17520016 UNP	175	200	16	17	7
U-17520015 UNP	175	200	15	16	7
U-17519515 UNP	175	195	15	16	6
U-1751909 UNP	175	190	9	10	5.5
U-18021022 UNP	180	210	22	23	7
U-18020015 UNP	180	200	15	16	6
U-18020515 UNP	180	205	15	16	7
U-18020012 UNP	180	200	12	13	6
U-18519512 UNP	185	195	12	13	4.5
U-1852009 UNP	185	200	9	10	5.5
U-19022025 UNP	190	220	25	26	7
U-19021015 UNP	190	210	15	16	6
U-19021520 UNP	190	215	20	21	7
U-19021012 UNP	190	210	12	13	6
U-19020620 UNP	190	206	20	21	6
U-20023022 UNP	200	230	22	23	7
U-20024020 UNP	200	240	20	21	9
U-20023520 UNP	200	235	20	21	9
U-20022015 UNP	200	220	15	16	6
U-20023018 UNP	200	230	18	19	7
U-20022518 UNP	200	225	18	19	7
U-20022012 UNP	200	220	12	13	6
U-20022016 UNP	200	220	16	17	6
U-20023015 UNP	200	230	15	16	7
U-20022515 UNP	200	225	15	16	7
U-20422412 UNP	204	224	12	13	6
U-21023015 UNP	210	230	15	16	6
U-21024018 UNP	210	240	18	19	7
U-21023515 UNP	210	235	15	16	7
U-21023012 UNP	210	230	12	13	6
U-21524518 UNP	215	245	18	19	7
U-22025020 UNP	220	250	20	21	7
U-22025015 UNP	220	250	15	16	7
U-22025018 UNP	220	250	18	19	7
U-22024012 UNP	220	240	12	13	6
U-22424412 UNP	224	244	12	13	6
U-22525015 UNP	225	250	15	16	7
U-22525018 UNP	225	250	18	19	7
U-22524512 UNP	225	245	12	13	6
U-23025015 UNP	230	250	15	16	6
U-23026018 UNP	230	260	18	19	7
U-23025012 UNP	230	250	12	13	6
U-23525512 UNP	235	255	12	13	6
U-24026016 UNP	240	260	16	17	6
U-24027018 UNP	240	270	18	19	7
U-24026518 UNP	240	265	18	19	7
U-24026013 UNP	240	260	13	14	6
U-24527518 UNP	245	275	18	19	7
U-25027015 UNP	250	270	15	16	6
U-25027519 UNP	250	275	19	20	7
U-25028022 UNP	250	280	22	23	7
U-25028018 UNP	250	280	18	19	7
U-25027012 UNP	250	270	12	13	6
U-26029018 UNP	260	290	18	19	7
U-26028015 UNP	260	280	15	16	6
U-26028014 UNP	260	280	14	15	6
U-26529018 UNP	265	290	18	19	7
U-27030018 UNP	270	300	18	19	7
U-27030022 UNP	270	300	22	23	7
U-27030015 UNP	270	300	15	16	7
U-27529515 UNP	275	295	15	16	6
U-28030015 UNP	280	300	15	16	6
U-28031015 UNP	280	310	15	16	7
U-28030014 UNP	280	300	14	15	6
U-29031012 UNP	290	310	12	13	6
U-30033017 UNP	300	330	17	18	7
U-31033015 UNP	310	330	15	16	6
U-32035015 UNP	320	350	15	16	7
U-34036015 UNP	340	360	15	16	6
U-36038016 UNP	360	380	16	17	6
U-37539512 UNP	375	395	12	13	6
U-43045015 UNP	430	450	15	16	6

Plano técnico y parámetros de montaje de las juntas simétricas UNP

Este esquema técnico define las cotas y variables geométricas esenciales para la correcta selección y montaje por encaje (snap-on) de la junta simétrica UNP (apta tanto para vástago como para pistón). En él encontrará las dimensiones críticas vinculadas a las tablas de especificaciones, tales como el diámetro interior (Ød), el diámetro exterior (ØD), el ancho del perfil de la junta (b), el ancho de la ranura de alojamiento (B) y la longitud del chaflán de entrada (C). El cumplimiento de estos valores asegura un adecuado guiado y posicionamiento, garantizando un excelente cierre estático y dinámico en cilindros hidráulicos de exigencia moderada.

Vista tridimensional y componentes de las juntas simétricas UNP

Esta ilustración en 3D le detalla la estructura fundamental de la junta simétrica UNP. Podrá observar claramente sus elementos clave: el cuerpo de poliuretano (PU), sus labios de estanqueidad simétricos y el canto de estanqueidad de perfil ligeramente rebajado. Su diseño robusto de geometría reversible le permite funcionar indistintamente en vástago o pistón, ofreciendo un excelente cierre estático y dinámico y un montaje sencillo por encaje (snap-on).

¿Podemos ayudarle?

Nuestro equipo le ayudará a buscar la mejor solución y a elegir el perfil y el material óptimos para su aplicación.

Juntas simétricas UNP

Videos

Menú

Información

Contacto
