How to measure an O-ring correctly: practical guide to obtaining the exact dimensions

Learn how to measure an O-ring correctly. Methods for obtaining the inside diameter and cross-section, avoiding measurement errors, and selecting the right seal for each application.

O-rings are one of the most widely used sealing elements in hydraulic, pneumatic, industrial, and mechanical applications. However, one of the most common questions from customers is how to correctly identify the dimensions of an O-ring when no reference number or technical data sheet is available.

Although measuring a small O-ring is usually straightforward with a vernier caliper, the process becomes considerably more complex when dealing with large-diameter O-rings, especially those above 200 mm inside diameter. In these cases, an incorrect measurement can lead to errors when selecting the replacement seal and may cause sealing problems, leaks, or reduced service life.

What dimensions are needed to identify an O-ring?

To correctly define an O-ring, two key parameters are required:

Based on these two values, the correct O-ring reference can be determined.

In some cases, the outside diameter (OD) is also used as complementary information, although the standard technical identification is based on the inside diameter and the cross-section.

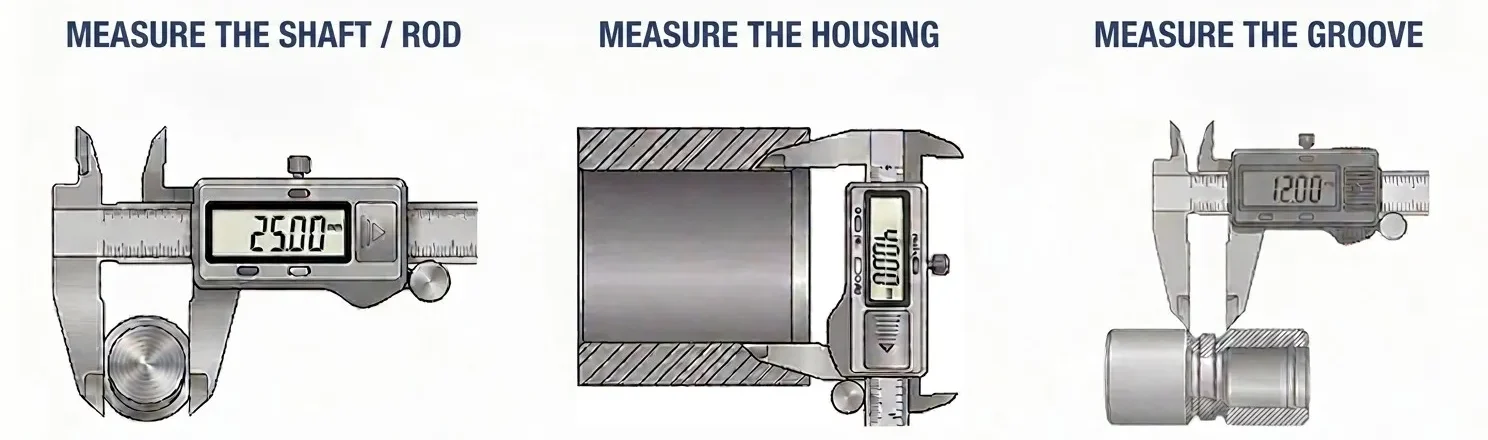

Method 1: Measuring the housing or groove

Este es el método más preciso y recomendable siempre que sea posible.
La idea consiste en medir directamente el componente donde va instalada la junta tórica, ya que las carcasas, ranuras y alojamientos son elementos rígidos que mantienen sus dimensiones originales y permiten obtener mediciones mucho más fiables que las realizadas sobre una junta usada o deformada.

This method makes it easy to obtain:

It is important to take design tolerances into account. In many applications, the inside diameter of the O-ring must be slightly smaller than the housing diameter to ensure proper compression and effective sealing performance.

Advantages of this method

For this reason, whenever access to the groove or housing is possible, this is generally the most reliable solution.

Method 2: Measurement by cutting and developed length

When the O-ring has been removed and the housing is not available, there is a second effective alternative, especially for large-size O-rings.

Step 1. Measure the cross-section

Use a vernier caliper or digital caliper to accurately measure the O-ring cross-section.
This value corresponds to the O-ring cord thickness and should be measured at several points to confirm that there are no significant deformations.

Step 2. Make a straight cut

Once the cross-section has been determined, make a straight cut through the O-ring.
This method should only be used when the O-ring will not be reused afterwards.

Step 3. Measure the total length

After opening the O-ring, lay it completely flat on a smooth surface and measure its total length using a measuring tape.
For greater accuracy, it is recommended to secure the O-ring to the tape with adhesive tape, preventing movement during measurement.

Step 4. Apply the formula

Once the total length has been measured and the cross-section is known, the actual inside diameter can be calculated.
The original guide proposes the following formulas:
A = Length ÷ 3.142 = Circumference
B = Circumference − Cross-section = Inside Diameter (ID)
For greater mathematical accuracy, π = 3.1416 may be used.

Common errors when measuring an O-ring

The most common errors include:

These errors can lead to the selection of an incorrect seal, resulting in premature leaks or installation problems.

Recommended tools for measuring O-rings

To obtain reliable results, it is recommended to use:

Measuring cones make it possible to quickly identify the inside diameter of large-size O-rings and are especially useful in maintenance workshops, purchasing departments, and technical service departments.

Need help identifying an O-ring?

At OSN, we help our customers every day to identify standard and special O-rings for industrial, hydraulic, pneumatic, and sealing applications.

We offer:

If you have an O-ring without a reference, our technical team can help you identify the exact size and recommend the best sealing solution for your industrial application.
