Washer DIN 988

Description
DIN 988 calibrated washers used to adjust clearances and compensate tolerances on shafts and bearings. Available in multiple diameters and thicknesses from 0.1 mm, they allow precise measurements to be achieved by combining several parts. Manufactured to tight tolerances in steel or stainless steel, they are ideal for precision mechanical assemblies.
Assembly
DIN 988 washers are mounted between the bearing and its housing or between shaft components to adjust clearances. They should be laid flat, clean and well aligned, stacking several if a specific thickness is required. No special tools are required and it is only necessary to ensure that the shaft and surfaces are free of burrs to avoid premature wear.
Materials
Materials available for DIN 988 type washers include carbon steel and A2/A4 stainless steel, plus options in AISI 1010, 1085, 52100, 304, 316 and 420. There are also technical versions in plastics (PA, POM, PTFE) or elastomers. The usual finishes include galvanizing, zinc plating, phosphating, blueing and special anti-corrosion coatings.
Technical data
  • 6 – 200 mm
  • Steel or stainless steel

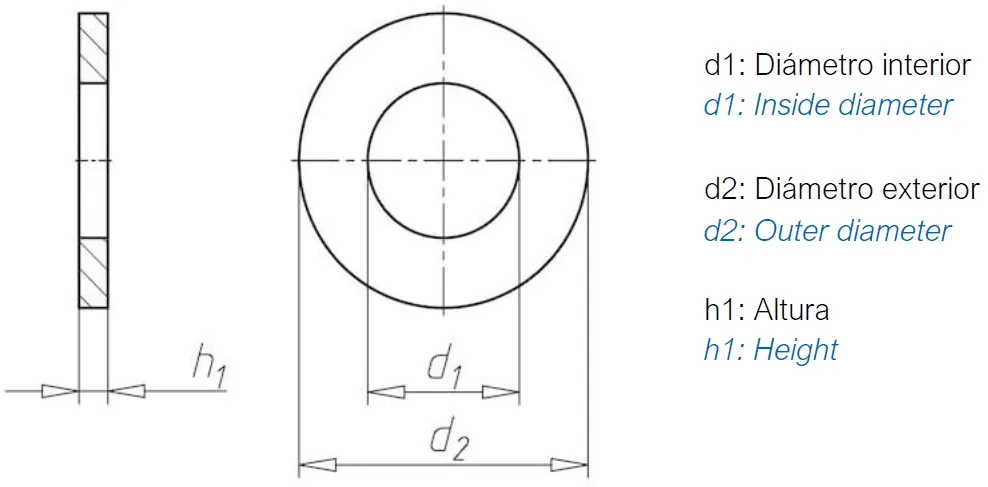

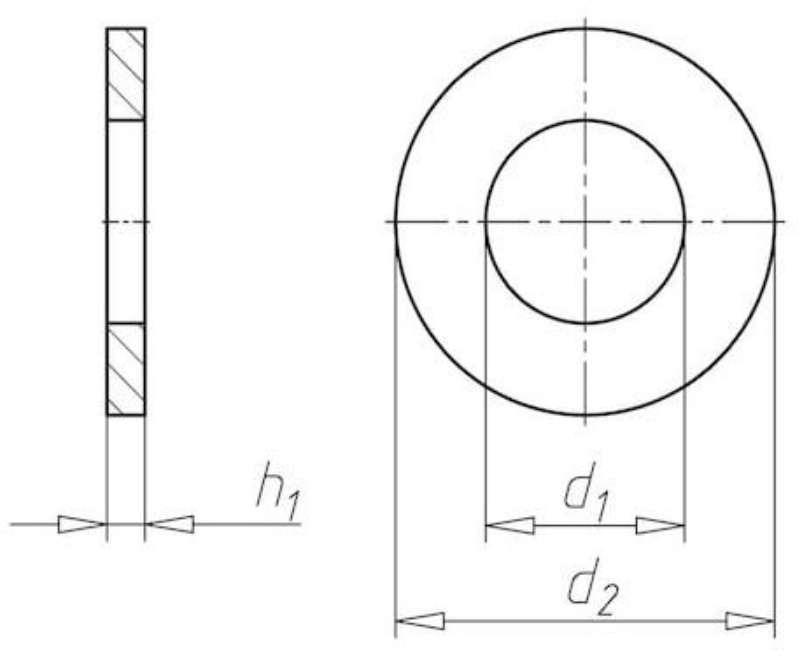

ITEMd1d2h1
PS-3X6X0.1360.1
PS-3X6X0.15360.15
PS-3X6X0.2360.2
PS-3X6X0.25360.25
PS-3X6X0.3360.3
PS-3X6X0.5360.5
PS-3X6X1361
PS-4X8X0.1480.1
PS-4X8X0.15480.15
PS-4X8X0.2480.2
PS-4X8X0.25480.25
PS-4X8X0.3480.3
PS-4X8X0.5480.5
PS-4X8X1481
PS-5X10X0.15100.1
PS-5X10X0.155100.15
PS-5X10X0.25100.2
PS-5X10X0.255100.25
PS-5X10X0.35100.3
PS-5X10X0.55100.5
PS-5X10X15101
PS-6X12X0.16120.1
PS-6X12X0.156120.15
PS-6X12X0.26120.2
PS-6X12X0.256120.25
PS-6X12X0.36120.3
PS-6X12X0.56120.5
PS-6X12X16121
PS-7X13X0.17130.1
PS-7X13X0.157130.15
PS-7X13X0.27130.2
PS-7X13X0.257130.25
PS-7X13X0.37130.3
PS-7X13X0.57130.5
PS-7X13X17131
PS-7X13X1.27131.2
PS-7X13X1.57131.5
PS-7X13X27132
PS-8X14X0.18140.1
PS-8X14X0.158140.15
PS-8X14X0.28140.2
PS-8X14X0.258140.25
PS-8X14X0.38140.3
PS-8X14X0.58140.5
PS-8X14X18141
PS-8X14X1.28141.2
PS-8X14X1.58141.5
PS-8X14X28142
PS-9X15X0.19150.1
PS-9X15X0.159150.15
PS-9X15X0.29150.2
PS-9X15X0.259150.25
PS-9X15X0.39150.3
PS-9X15X0.59150.5
PS-9X15X19151
PS-9X15X1.29151.2
PS-9X15X1.59151.5
PS-9X15X29152
PS-10X16X0.110160.1
PS-10X16X0.1510160.15
PS-10X16X0.210160.2
PS-10X16X0.2510160.25
PS-10X16X0.310160.3
PS-10X16X0.510160.5
PS-10X16X110161
PS-10X16X1.210161.2
PS-10X16X1.510161.5
PS-10X16X210162
PS-11X17X0.111170.1
PS-11X17X0.1511170.15
PS-11X17X0.211170.2
PS-11X17X0.2511170.25
PS-11X17X0.311170.3
PS-11X17X0.511170.5
PS-11X17X111171
PS-11X17X1.211171.2
PS-11X17X1.511171.5
PS-11X17X211172
PS-12X18X0.112180.1
PS-12X18X0.1512180.15
PS-12X18X0.212180.2
PS-12X18X0.2512180.25
PS-12X18X0.312180.3
PS-12X18X0.512180.5
PS-12X18X112181
PS-12X18X1.212181.2
PS-12X18X1.512181.5
PS-12X18X212182
PS-13X19X0.113190.1
PS-13X19X0.1513190.15
PS-13X19X0.213190.2
PS-13X19X0.2513190.25
PS-13X19X0.313190.3
PS-13X19X0.513190.5
PS-13X19X113191
PS-13X19X1.213191.2
PS-13X19X1.513191.5
PS-13X19X213192
PS-14X20X0.114200.1
PS-14X20X0.1514200.15
PS-14X20X0.214200.2
PS-14X20X0.2514200.25
PS-14X20X0.314200.3
PS-14X20X0.514200.5
PS-14X20X114201
PS-14X20X1.214201.2
PS-14X20X1.514201.5
PS-14X20X214202
PS-15X21X0.115210.1
PS-15X21X0.1515210.15
PS-15X21X0.215210.2
PS-15X21X0.2515210.25
PS-15X21X0.315210.3
PS-15X21X0.515210.5
PS-15X21X115211
PS-15X21X1.215211.2
PS-15X21X215212
PS-15X22X0.115220.1
PS-15X22X0.1515220.15
PS-15X22X0.215220.2
PS-15X22X0.2515220.25
PS-15X22X0.315220.3
PS-15X22X0.515220.5
PS-15X22X115221
PS-15X22X1.215221.2
PS-15X22X1.515221.5
PS-15X22X215222
PS-16X22X0.116220.1
PS-16X22X0.1516220.15
PS-16X22X0.216220.2
PS-16X22X0.2516220.25
PS-16X22X0.316220.3
PS-16X22X0.516220.5
PS-16X22X116221
PS-16X22X1.216221.2
PS-16X22X1.516221.5
PS-16X22X216222
PS-17X24X0.117240.1
PS-17X24X0.1517240.15
PS-17X24X0.217240.2
PS-17X24X0.2517240.25
PS-17X24X0.317240.3
PS-17X24X0.517240.5
PS-17X24X117241
PS-17X24X1.217241.2
PS-17X24X1.517241.5
PS-17X24X217242
PS-18X25X0.118250.1
PS-18X25X0.1518250.15
PS-18X25X0.218250.2
PS-18X25X0.2518250.25
PS-18X25X0.318250.3
PS-18X25X0.518250.5
PS-18X25X118251
PS-18X25X1.218251.2
PS-18X25X1.518251.5
PS-18X25X218252
PS-19X26X0.119260.1
PS-19X26X0.1519260.15
PS-19X26X0.219260.2
PS-19X26X0.2519260.25
PS-19X26X0.319260.3
PS-19X26X0.519260.5
PS-19X26X119261
PS-19X26X1.219261.2
PS-19X26X1.519261.5
PS-19X26X219262
PS-20X28X0.120280.1
PS-20X28X0.1520280.15
PS-20X28X0.220280.2
PS-20X28X0.2520280.25
PS-20X28X0.320280.3
PS-20X28X0.520280.5
PS-20X28X120281
PS-20X28X1.220281.2
PS-20X28X1.520281.5
PS-20X28X220282
PS-22X30X0.122300.1
PS-22X30X0.1522300.15
PS-22X30X0.222300.2
PS-22X30X0.2522300.25
PS-22X30X0.322300.3
PS-22X30X0.522300.5
PS-22X30X122301
PS-22X30X1.222301.2
PS-22X30X1.522301.5
PS-22X30X222302
PS-22X32X0.122320.1
PS-22X32X0.1522320.15
PS-22X32X0.222320.2
PS-22X32X0.2522320.25
PS-22X32X0.322320.3
PS-22X32X0.522320.5
PS-22X32X122321
PS-22X32X1.222321.2
PS-22X32X1.522321.5
PS-22X32X222322
PS-25X35X0.125350.1
PS-25X35X0.1525350.15
PS-25X35X0.225350.2
PS-25X35X0.2525350.25
PS-25X35X0.325350.3
PS-25X35X0.525350.5
PS-25X35X125351
PS-25X35X1.225351.2
PS-25X35X1.525351.5
PS-25X35X225352
PS-25X36X0.125360.1
PS-25X36X0.1525360.15
PS-25X36X0.225360.2
PS-25X36X0.2525360.25
PS-25X36X0.325360.3
PS-25X36X0.525360.5
PS-25X36X125361
PS-25X36X1.225361.2
PS-25X36X1.525361.5
PS-25X36X225362
PS-26X37X0.126370.1
PS-26X37X0.1526370.15
PS-26X37X0.226370.2
PS-26X37X0.2526370.25
PS-26X37X0.326370.3
PS-26X37X0.526370.5
PS-26X37X126371
PS-26X37X1.226371.2
PS-26X37X1.526371.5
PS-26X37X226372
PS-26X37X2.526372.5
PS-28X40X0.128400.1
PS-28X40X0.1528400.15
PS-28X40X0.228400.2
PS-28X40X0.2528400.25
PS-28X40X0.328400.3
PS-28X40X0.528400.5
PS-28X40X128401
PS-28X40X1.228401.2
PS-28X40X1.528401.5
PS-28X40X228402
PS-30X42X0.130420.1
PS-30X42X0.1530420.15
PS-30X42X0.230420.2
PS-30X42X0.2530420.25
PS-30X42X0.330420.3
PS-30X42X0.530420.5
PS-30X42X130421
PS-30X42X1.230421.2
PS-30X42X1.530421.5
PS-30X42X230422
PS-30X42X2.530422.5
PS-32X45X0.132450.1
PS-32X45X0.1532450.15
PS-32X45X0.232450.2
PS-32X45X0.2532450.25
PS-32X45X0.332450.3
PS-32X45X0.532450.5
PS-32X45X132451
PS-32X45X1.232451.2
PS-32X45X1.532451.5
PS-32X45X232452
PS-32X45X2.532452.5
PS-35X45X0.135450.1
PS-35X45X0.1535450.15
PS-35X45X0.235450.2
PS-35X45X0.2535450.25
PS-35X45X0.335450.3
PS-35X45X0.535450.5
PS-35X45X135451
PS-35X45X1.235451.2
PS-35X45X1.535451.5
PS-35X45X235452
PS-35X45X2.535452.5
PS-35X45X335453
PS-35X45X3.535453.5
PS-36X45X0.136450.1
PS-36X45X0.1536450.15
PS-36X45X0.236450.2
PS-36X45X0.2536450.25
PS-36X45X0.336450.3
PS-36X45X0.536450.5
PS-36X45X136451
PS-36X45X1.236451.2
PS-36X45X1.536451.5
PS-36X45X236452
PS-36X45X2.536452.5
PS-37X47X0.137470.1
PS-37X47X0.1537470.15
PS-37X47X0.237470.2
PS-37X47X0.2537470.25
PS-37X47X0.337470.3
PS-37X47X0.537470.5
PS-37X47X137471
PS-37X47X1.237471.2
PS-37X47X1.537471.5
PS-37X47X237472
PS-37X47X2.537472.5
PS-40X50X0.140500.1
PS-40X50X0.1540500.15
PS-40X50X0.240500.2
PS-40X50X0.2540500.25
PS-40X50X0.340500.3
PS-40X50X0.540500.5
PS-40X50X140501
PS-40X50X1.240501.2
PS-40X50X1.540501.5
PS-40X50X240502
PS-40X50X2.540502.5
PS-40X50X340503
PS-42X52X0.142520.1
PS-42X52X0.1542520.15
PS-42X52X0.242520.2
PS-42X52X0.2542520.25
PS-42X52X0.342520.3
PS-42X52X0.542520.5
PS-42X52X142521
PS-42X52X1.242521.2
PS-42X52X1.542521.5
PS-42X52X242522
PS-42X52X2.542522.5
PS-42X52X342523
PS-42X52X3.542523.5
PS-45X55X0.145550.1
PS-45X55X0.1545550.15
PS-45X55X0.245550.2
PS-45X55X0.2545550.25
PS-45X55X0.345550.3
PS-45X55X0.545550.5
PS-45X55X145551
PS-45X55X1.245551.2
PS-45X55X1.545551.5
PS-45X55X245552
PS-45X55X345553
PS-45X56X0.145560.1
PS-45X56X0.1545560.15
PS-45X56X0.245560.2
PS-45X56X0.2545560.25
PS-45X56X0.345560.3
PS-45X56X0.545560.5
PS-45X56X145561
PS-45X56X1.245561.2
PS-45X56X1.545561.5
PS-45X56X245562
PS-45X56X345563
PS-48X60X0.148600.1
PS-48X60X0.1548600.15
PS-48X60X0.248600.2
PS-48X60X0.2548600.25
PS-48X60X0.348600.3
PS-48X60X0.548600.5
PS-48X60X148601
PS-48X60X1.248601.2
PS-48X60X1.548601.5
PS-48X60X248602
PS-48X60X348603
PS-50X62X0.150620.1
PS-50X62X0.1550620.15
PS-50X62X0.250620.2
PS-50X62X0.2550620.25
PS-50X62X0.350620.3
PS-50X62X0.550620.5
PS-50X62X150621
PS-50X62X1.250621.2
PS-50X62X1.550621.5
PS-50X62X250622
PS-50X62X2.550622.5
PS-50X62X350623
PS-50X62X3.550623.5
PS-50X63X0.150630.1
PS-50X63X0.1550630.15
PS-50X63X0.250630.2
PS-50X63X0.2550630.25
PS-50X63X0.350630.3
PS-50X63X0.550630.5
PS-50X63X150631
PS-50X63X1.250631.2
PS-50X63X1.550631.5
PS-50X63X250632
PS-50X63X350633
PS-52X65X0.152650.1
PS-52X65X0.1552650.15
PS-52X65X0.252650.2
PS-52X65X0.2552650.25
PS-52X65X0.352650.3
PS-52X65X0.552650.5
PS-52X65X152651
PS-52X65X1.252651.2
PS-52X65X1.552651.5
PS-52X65X252652
PS-52X65X352653
PS-55X68X0.155680.1
PS-55X68X0.1555680.15
PS-55X68X0.255680.2
PS-55X68X0.2555680.25
PS-55X68X0.355680.3
PS-55X68X0.555680.5
PS-55X68X155681
PS-55X68X1.255681.2
PS-55X68X1.555681.5
PS-55X68X255682
PS-55X68X2.555682.5
PS-55X68X355683
PS-56X70X0.156700.1
PS-56X70X0.1556700.15
PS-56X70X0.256700.2
PS-56X70X0.2556700.25
PS-56X70X0.356700.3
PS-56X70X0.556700.5
PS-56X70X156701
PS-56X70X1.256701.2
PS-56X70X1.556701.5
PS-56X70X256702
PS-56X70X356703
PS-56X72X0.156720.1
PS-56X72X0.1556720.15
PS-56X72X0.256720.2
PS-56X72X0.2556720.25
PS-56X72X0.356720.3
PS-56X72X0.556720.5
PS-56X72X156721
PS-56X72X1.256721.2
PS-56X72X1.556721.5
PS-56X72X256722
PS-56X72X356723
PS-60X75X0.160750.1
PS-60X75X0.1560750.15
PS-60X75X0.260750.2
PS-60X75X0.2560750.25
PS-60X75X0.360750.3
PS-60X75X0.560750.5
PS-60X75X160751
PS-60X75X1.260751.2
PS-60X75X1.560751.5
PS-60X75X260752
PS-60X75X360753
PS-63X80X0.163800.1
PS-63X80X0.1563800.15
PS-63X80X0.263800.2
PS-63X80X0.2563800.25
PS-63X80X0.363800.3
PS-63X80X0.563800.5
PS-63X80X163801
PS-63X80X1.263801.2
PS-63X80X1.563801.5
PS-63X80X263802
PS-63X80X363803
PS-65X85X0.165850.1
PS-65X85X0.1565850.15
PS-65X85X0.265850.2
PS-65X85X0.2565850.25
PS-65X85X0.365850.3
PS-65X85X0.565850.5
PS-65X85X165851
PS-65X85X1.265851.2
PS-65X85X1.565851.5
PS-65X85X265852
PS-65X85X365853
PS-65X85X3.565853.5
PS-70X90X0.170900.1
PS-70X90X0.1570900.15
PS-70X90X0.270900.2
PS-70X90X0.2570900.25
PS-70X90X0.370900.3
PS-70X90X0.570900.5
PS-70X90X170901
PS-70X90X1.270901.2
PS-70X90X1.570901.5
PS-70X90X270902
PS-70X90X3.570903.5
PS-75X95X0.175950.1
PS-75X95X0.1575950.15
PS-75X95X0.275950.2
PS-75X95X0.2575950.25
PS-75X95X0.375950.3
PS-75X95X0.575950.5
PS-75X95X175951
PS-75X95X1.275951.2
PS-75X95X1.575951.5
PS-75X95X275952
PS-75X95X2.575952.5
PS-75X95X3.575953.5
PS-80X100X0.1801000.1
PS-80X100X0.15801000.15
PS-80X100X0.2801000.2
PS-80X100X0.25801000.25
PS-80X100X0.3801000.3
PS-80X100X0.5801000.5
PS-80X100X1801001
PS-80X100X1.2801001.2
PS-80X100X1.5801001.5
PS-80X100X2801002
PS-80X100X3.5801003.5
PS-85X105X0.1851050.1
PS-85X105X0.15851050.15
PS-85X105X0.2851050.2
PS-85X105X0.25851050.25
PS-85X105X0.3851050.3
PS-85X105X0.5851050.5
PS-85X105X1851051
PS-85X105X1.2851051.2
PS-85X105X1.5851051.5
PS-85X105X2851052
PS-85X105X2.5851052.5
PS-85X105X3.5851053.5
PS-90X110X0.1901100.1
PS-90X110X0.15901100.15
PS-90X110X0.2901100.2
PS-90X110X0.25901100.25
PS-90X110X0.3901100.3
PS-90X110X0.5901100.5
PS-90X110X1901101
PS-90X110X1.2901101.2
PS-90X110X1.5901101.5
PS-90X110X2901102
PS-90X110X3901103
PS-90X110X3.5901103.5
PS-95X115X0.1951150.1
PS-95X115X0.15951150.15
PS-95X115X0.2951150.2
PS-95X115X0.25951150.25
PS-95X115X0.3951150.3
PS-95X115X0.5951150.5
PS-95X115X1951151
PS-95X115X1.2951151.2
PS-95X115X1.5951151.5
PS-95X115X2951152
PS-95X115X3.5951153.5
PS-100X120X0.11001200.1
PS-100X120X0.151001200.15
PS-100X120X0.21001200.2
PS-100X120X0.251001200.25
PS-100X120X0.31001200.3
PS-100X120X0.51001200.5
PS-100X120X11001201
PS-100X120X1.21001201.2
PS-100X120X1.51001201.5
PS-100X120X21001202
PS-100X120X2.51001202.5
PS-100X120X3.51001203.5
PS-100X125X0.11001250.1
PS-100X125X0.151001250.15
PS-100X125X0.21001250.2
PS-100X125X0.251001250.25
PS-100X125X0.31001250.3
PS-100X125X0.51001250.5
PS-100X125X11001251
PS-100X125X1.21001251.2
PS-100X125X1.51001251.5
PS-100X125X21001252
PS-100X125X3.51001253.5
PS-105X130X0.11051300.1
PS-105X130X0.151051300.15
PS-105X130X0.21051300.2
PS-105X130X0.251051300.25
PS-105X130X0.31051300.3
PS-105X130X0.51051300.5
PS-105X130X11051301
PS-105X130X1.21051301.2
PS-105X130X1.51051301.5
PS-105X130X21051302
PS-105X130X3.51051303.5
PS-110X140X0.11101400.1
PS-110X140X0.151101400.15
PS-110X140X0.21101400.2
PS-110X140X0.251101400.25
PS-110X140X0.31101400.3
PS-110X140X0.51101400.5
PS-110X140X11101401
PS-110X140X1.21101401.2
PS-110X140X1.51101401.5
PS-110X140X21101402
PS-110X140X3.51101403.5
PS-120X150X0.11201500.1
PS-120X150X0.151201500.15
PS-120X150X0.21201500.2
PS-120X150X0.251201500.25
PS-120X150X0.31201500.3
PS-120X150X0.51201500.5
PS-120X150X11201501
PS-120X150X1.21201501.2
PS-120X150X1.51201501.5
PS-120X150X21201502
PS-120X150X3.51201503.5
PS-130X160X0.11301600.1
PS-130X160X0.151301600.15
PS-130X160X0.21301600.2
PS-130X160X0.251301600.25
PS-130X160X0.31301600.3
PS-130X160X0.51301600.5
PS-130X160X11301601
PS-130X160X1.21301601.2
PS-130X160X1.51301601.5
PS-130X160X21301602
PS-130X160X3.51301603.5
PS-140X170X0.11401700.1
PS-140X170X0.151401700.15
PS-140X170X0.21401700.2
PS-140X170X0.251401700.25
PS-140X170X0.31401700.3
PS-140X170X0.51401700.5
PS-140X170X11401701
PS-140X170X1.21401701.2
PS-140X170X1.51401701.5
PS-140X170X21401702
PS-140X170X3.51401703.5
PS-150X180X0.11501800.1
PS-150X180X0.151501800.15
PS-150X180X0.21501800.2
PS-150X180X0.251501800.25
PS-150X180X0.31501800.3
PS-150X180X0.51501800.5
PS-150X180X11501801
PS-150X180X1.21501801.2
PS-150X180X1.51501801.5
PS-150X180X21501802
PS-150X180X3.51501803.5
PS-160X190X0.11601900.1
PS-160X190X0.151601900.15
PS-160X190X0.21601900.2
PS-160X190X0.251601900.25
PS-160X190X0.31601900.3
PS-160X190X0.51601900.5
PS-160X190X11601901
PS-160X190X1.21601901.2
PS-160X190X1.51601901.5
PS-160X190X21601902
PS-160X190X3.51601903.5
PS-170X200X0.11702000.1
PS-170X200X0.151702000.15
PS-170X200X0.21702000.2
PS-170X200X0.251702000.25
PS-170X200X0.31702000.3
PS-170X200X0.51702000.5
PS-170X200X11702001
PS-170X200X1.21702001.2
PS-170X200X1.51702001.5
PS-170X200X21702002
PS-170X200X3.51702003.5
Technical drawing and installation parameters of the DIN 988 shim washers
This technical diagram defines the dimensions and geometric variables that are essential for the correct selection and installation of the DIN 988 shim washer, used to adjust clearances and compensate tolerances on shafts and bearings. It shows the critical dimensions linked to the specification tables, such as the inside diameter (d1), the outside diameter (d2) and the calibrated thickness (h1), available from one tenth of a millimetre. Complying with these dimensions ensures the precise setting of the axial clearance, allows the required dimension to be reached by combining several thicknesses and maintains a flat and uniform support of the assembly.
Contacto OSN

Can we help you?

Our team will help you find the best solution and choose the optimal profile and material for your application.
CONTACT
Customer Area
Access for registered distributors and industrial suppliers.
Enter the partner channel
E-shop
Direct purchase, with or without an account.
Go to the online store
