Washer DIN 463

Description

The DIN 463 washer is a locking washer with an outer tongue intended to prevent the nut or screw from turning. It is used by bending the tongue against a flat surface or inside a groove, ensuring secure mechanical anchoring in assemblies subject to vibration or twisting.

Assembly

For mounting a DIN 463 washer, place it between the nut or screw and the support surface, making sure that the tab is facing the groove, flat face or surface where it will be bent. Once the tightening torque has been applied, bend the tab against the nut or part to prevent it from rotating and secure the mechanical lock.

Materials

DIN 463 washers can be manufactured from carbon steel, stainless steel (A2, A4) or aluminum alloys, offering good mechanical and corrosion resistance. Typical finishes include galvanized, phosphated, or nickel-plated, which enhance its protection and durability in demanding industrial environments.

Technical data

Para / For	b	d1	d2	L1	L2	S
M3	4	3.2	7	13	5	0.38
M4	5	4.3	9	14	6.5	0.38
M5	6	5.3	10	16	8	0.5
M6	7	6.4	12.5	18	9	0.5
M8	8	8.4	17	20	11	0.75
M10	10	10.5	21	22	13	0.75
M12	12	13	24	28	15	1
M14	12	15	28	28	16	1
M16	15	17	30	32	18	1
M18	18	19	34	36	20	1
M20	18	21	37	36	21	1
M22	20	23	39	42	23	1
M24	20	25	44	42	25	1
M27	23	28	50	48	29	1.6
M30	26	31	56	52	32	1.6
M33	28	34	60	56	34	1.6
M36	30	37	66	60	38	1.6
M39	32	40	72	64	41	1.6
M42	35	43	78	70	44	1.6
M48	40	50	92	80	50	1.6
M52	44	54	98	85	53	1.6

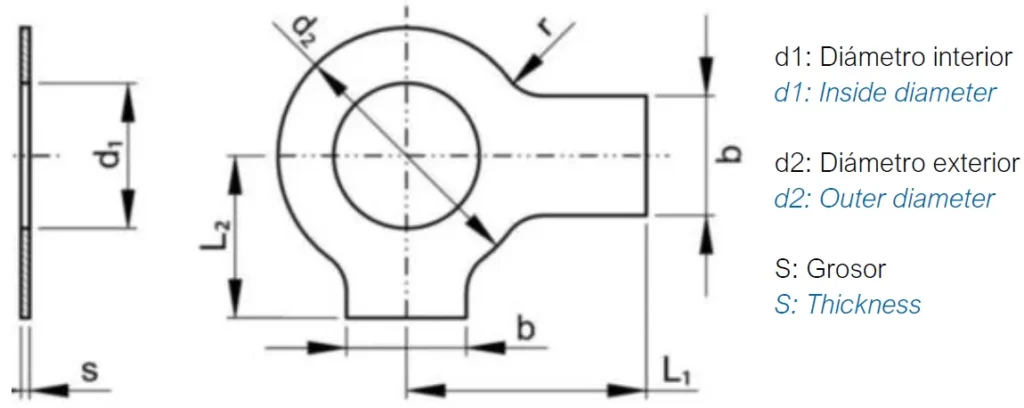

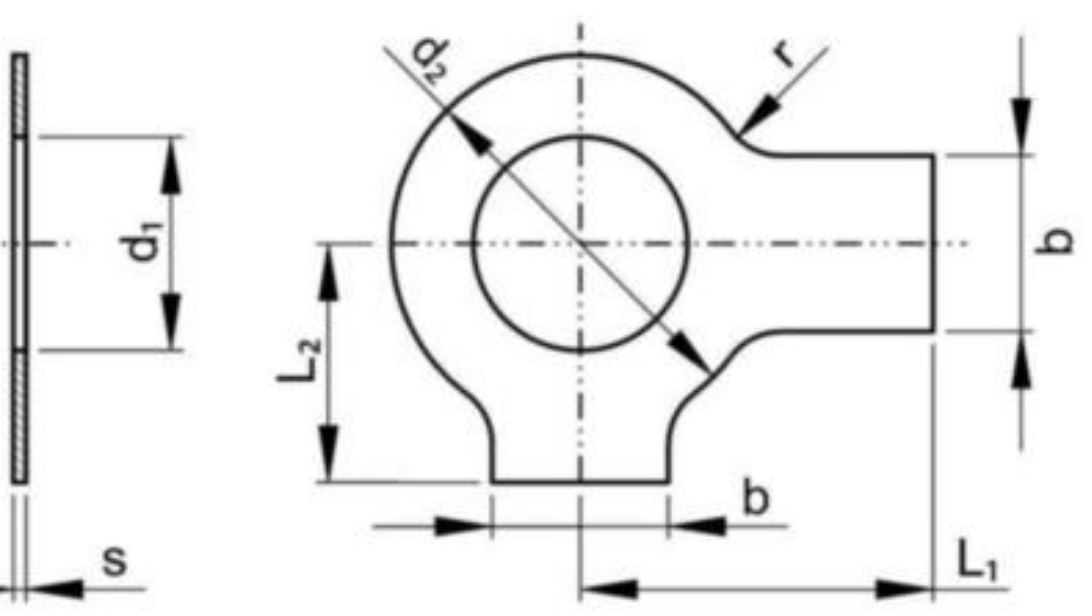

Technical drawing and installation parameters of the DIN 463 tab washers

This technical diagram defines the dimensions and geometric variables that are essential for the correct selection and installation of the DIN 463 tab washer, intended to prevent the nut or bolt from turning by mechanical locking. It shows the critical dimensions linked to the specification tables, such as the thread size of the bolt or nut it accompanies, the width of the tab (b), the inside diameter (d1), the outside diameter (d2), the lengths of the tabs (L1 and L2) and the material thickness (S). Complying with these dimensions ensures that the bent tab seats correctly against the flat surface or inside the intended groove, providing a secure anchorage in assemblies subject to vibration or torsional loads.
