Washer NL

Description

Lock washer for bolted joints that use the wedge effect between two serrated washers to lock the screw. They guarantee the integrity of the joint even under vibrations or dynamic loads, preventing spontaneous loosening.

Assembly

The two pieces should be placed as a unit, with the teeth facing each other. The assembly is located between the screw head and the support surface, or between the nut and the surface. The screw or nut is tightened to the recommended torque. They should not be reused if they are deformed or damaged. It is essential to verify that both parts are correctly aligned before assembly.

Materials

They are made of hardened steel and stainless steel, with anti-corrosion coating options such as zinc-nickel or flake zinc. Versions for high temperatures and aggressive environments are available, as well as variants with extended outer diameter (Sp) for special applications.

Technical data

Item	d	D	T
NL3	3.4	7	1.8
NL3.5	3.9	7.6	1.8
NL3.5SP	3.9	9	1.8
NL4	4.4	7.6	1.8
NL4SP	4.4	9	1.8
NL5	5.4	9	1.8
NL5SP	5.4	10.8	1.8
NL6	6.5	10.8	1.8
NL6SP	6.5	13.5	2.5
NL1/4”	7.2	11.5	2.5
NL1/4”SP	7.2	13.5	2.5
NL8	8.7	13.5	2.5
NL8SP	8.7	16.6	2.5
NL3/8”	10.3	16.6	2.5
NL3/8”SP	10.3	21	2.5
NL10	10.7	16.6	2.5
NL10SP	10.7	21	2.5
NL11	11.4	18.5	2.5
NL12	13	19.5	2.5
NL12SP	13	25.4	3.4
NL1/2”	13.5	19.5	2.5
NL1/2”SP	13.5	25.4	3.4
NL14	15.2	23	3.4
NL14SP	15.2	30.7	3.4
NL16	17	25.4	3.4
NL16SP	17	30.7	3.4
NL18	19.5	29	3.4
NL18SP	19.5	34.5	3.4
NL3/4”	20	30.7	3.4
NL3/4”SP	20	39	3.4
NL20	21.4	30.7	3.4
NL20SP	21.4	39	3.4
NL22	23.4	34.5	3.4
NL22SP	23.4	42	4.6
NL24	25.3	39	3.4
NL24SP	25.3	48.5	4.6
NL1”	27.9	39	3.4
NL1”SP	27.9	48.5	4.6
NL27	28.4	42	5.8
NL27SP	28.4	48.5	5.8
NL30	31.4	47	5.8
NL30SP	31.4	55	5.8
NL33	34.4	48.5	5.8
NL33SP	34.4	58.5	5.8
NL36	37.4	55	5.8
NL36SP	37.4	63	5.8
NL39	40.4	58.5	5.8
NL42	43.2	63	5.8
NL45	46.2	70	7
NL48	49.6	75	7
NL52	53.6	80	7
NL56	59.1	85	7
NL60	63.4	89	7
NL64	67.1	95	7
NL68	71.1	100	9.5
NL72	75.1	105	9.5
NL76	79.1	110	9.5
NL80	83.1	115	9.5
NL85	88.1	120	9.5
NL90	92.4	130	9.5
NL95	97.4	135	9.5
NL100	103.4	145	9.5
NL105	108.4	150	9.5
NL110	113.4	155	9.5
NL115	118.4	165	9.5
NL120	123.4	170	9.5
NL125	128.4	173	9.5
NL130	133.4	178	9.5

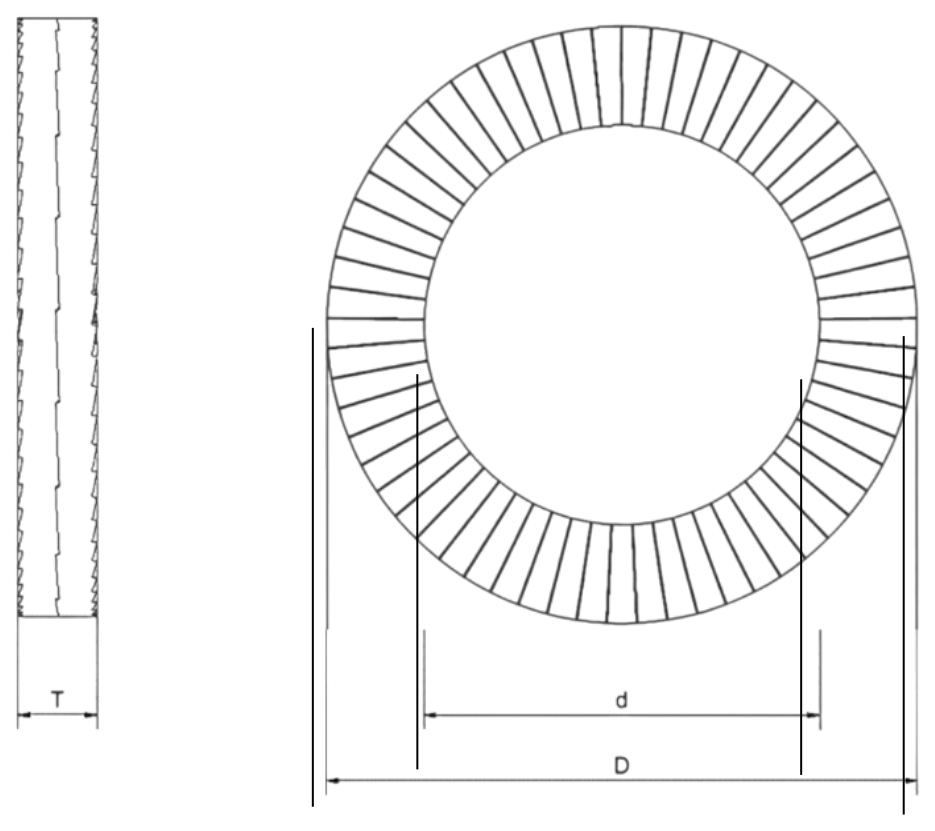

Technical drawing and installation parameters of the NL wedge lock washers

This technical diagram defines the dimensions and geometric variables that are essential for the correct selection and installation of the NL wedge lock washer, supplied in pairs with the serrated faces facing each other. It shows the critical dimensions linked to the specification tables, such as the inside diameter (d), the outside diameter (D) and the thickness of the assembled pair (T). Complying with these dimensions ensures that the outer teeth bite into the bearing surfaces and that the inner cams act as a wedge during loosening, maintaining the integrity of the bolted joint even under severe vibration or dynamic loads.
