V-Rings VR-VS

Description

Seal for rotary sealing made entirely of elastomer. The joint consists of a body and a front closing lip. The elasticity of the body together with the interference between it and the shaft, keeps the joint attached and rotating solidly with the shaft, without the need for a specific housing. The lip is exactly the same as the VA, but the body is more robust and a smaller range of measurements.

Assembly

The V-Ring VS is mounted by expanding it slightly to slide it over the shaft, ensuring that the lip is in uniform contact with the bearing surface, avoiding sharp edges and singing edges if necessary, and checking that the seat is clean and perpendicular to the shaft to ensure a correct seal.

Advantages

Standard design with reinforced body.
Excellent dynamic sealing effect thanks to the front lip.
Suitable as a primary sealing element or in combination with radial seals.
Capable of compensating for small axial displacements as well as angular and radial misalignments.
Direct installation on the shaft without the need for specific housing.
Friction decreases as peripheral velocity increases.
High body elasticity, ensuring a secure hold due to interference with the shaft.
Effective protection against dust, dirt, oil splashes, grease or water.

Materials

Available in NBR, FKM, CR, HNBR and VMQ materials, with hardnesses between 60 and 80 Shore. These compounds offer an optimal combination of flexibility, chemical resistance and thermal stability, enabling reliable performance against dust, splashes, oils, greases and atmospheric agents. Its elastic structure guarantees adequate adaptation to the shaft and an effective seal even in the event of misalignments or vibrations.

Technical data

NO.	d	d2	C	A	B
VS-005	4.5~5.5	4	2	3.9	5.2
VS-006	5.5~6.5	5	2	3.9	5.2
VS-007	6.5~8	6	2	3.9	5.2
VS-008	8~9.5	7	2	3.9	5.2
VS-010	9.5~11.5	9	3	5.6	7.7
VS-012	11.5~13.5	10.5	3	5.6	7.7
VS-014	13.5~15.5	12.5	3	5.6	7.7
VS-016	15.5~17.5	14	3	5.6	7.7
VS-018	17.5~19	16	3	5.6	7.7
VS-020	19~21	18	4	7.9	10.5
VS-022	21~24	20	4	7.9	10.5
VS-025	24~27	22	4	7.9	10.5
VS-028	27~29	25	4	7.9	10.5
VS-030	29~31	27	4	7.9	10.5
VS-032	31~33	29	4	7.9	10.5
VS-035	33~36	31	4	7.9	10.5
VS-038	36~38	34	4	7.9	10.5
VS-040	38~43	36	5	9.5	13
VS-045	43~48	40	5	9.5	13
VS-050	48~53	45	5	9.5	13
VS-055	53~58	49	5	9.5	13
VS-060	58~63	54	5	9.5	13
VS-065	63~68	58	5	9.5	13
VS-070	68~73	63	6	11.3	15.5
VS-075	73~78	67	6	11.3	15.5
VS-080	78~83	72	6	11.3	15.5
VS-085	83~88	76	6	11.3	15.5
VS-090	88~93	81	6	11.3	15.5
VS-095	93~98	85	6	11.3	15.5
VS-100	98~105	90	6	11.3	15.5
VS-110	105~115	99	7	13.1	18
VS-120	115~125	108	7	13.1	18
VS-130	125~135	117	7	13.1	18
VS-140	135~145	126	7	13.1	18
VS-150	145~155	135	7	13.1	18
VS-160	155~165	144	8	15.0	20
VS-170	165~175	153	8	15.0	20
VS-180	175~185	162	8	15.0	20
VS-190	185~195	171	8	15.0	20
VS-199	195~210	180	8	15.0	20

Plano técnico y cotas de diseño para el montaje de los V-Rings VR-VS

Este esquema técnico le detalla los parámetros geométricos necesarios para verificar el asiento y la instalación de la junta. En el diagrama encontrará identificadas variables críticas como el ancho del cuerpo (A), el ancho total (B), la altura (C) y el ancho de montaje (B1). Estos valores le permitirán asegurar una adecuada perpendicularidad y un contacto uniforme sobre la superficie.

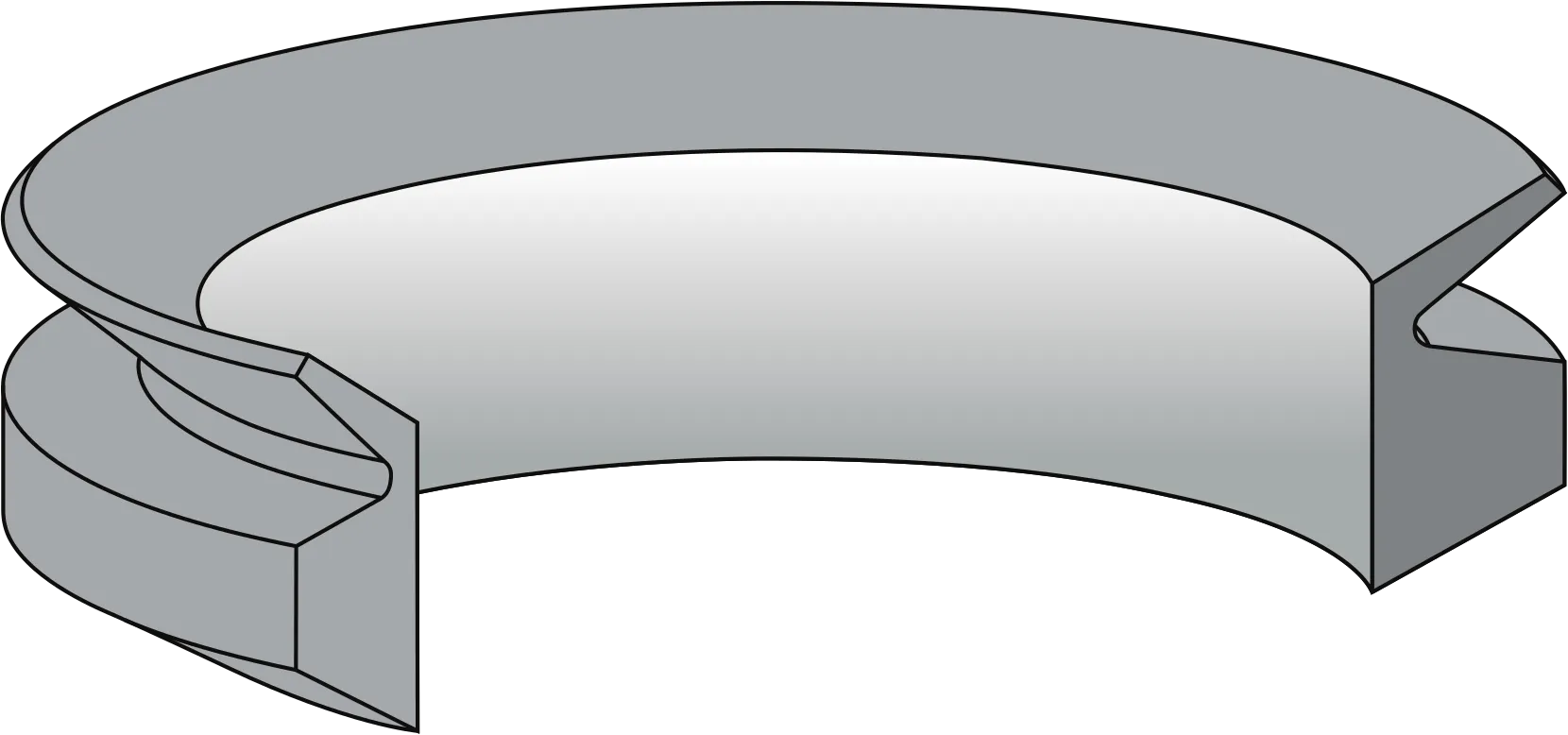

Vista tridimensional y componentes de los V-Rings VR-VS con cuerpo reforzado

Esta ilustración en 3D le muestra la estructura de la junta rotativa V-Ring VS, diseñada con un cuerpo reforzado para optimizar el sellado dinámico en aplicaciones industriales. Podrá identificar sus componentes esenciales fabricados en elastómero: el cuerpo, la bisagra y el labio guardapolvo frontal. Su elasticidad le asegura un ajuste perfecto y solidario al eje.
